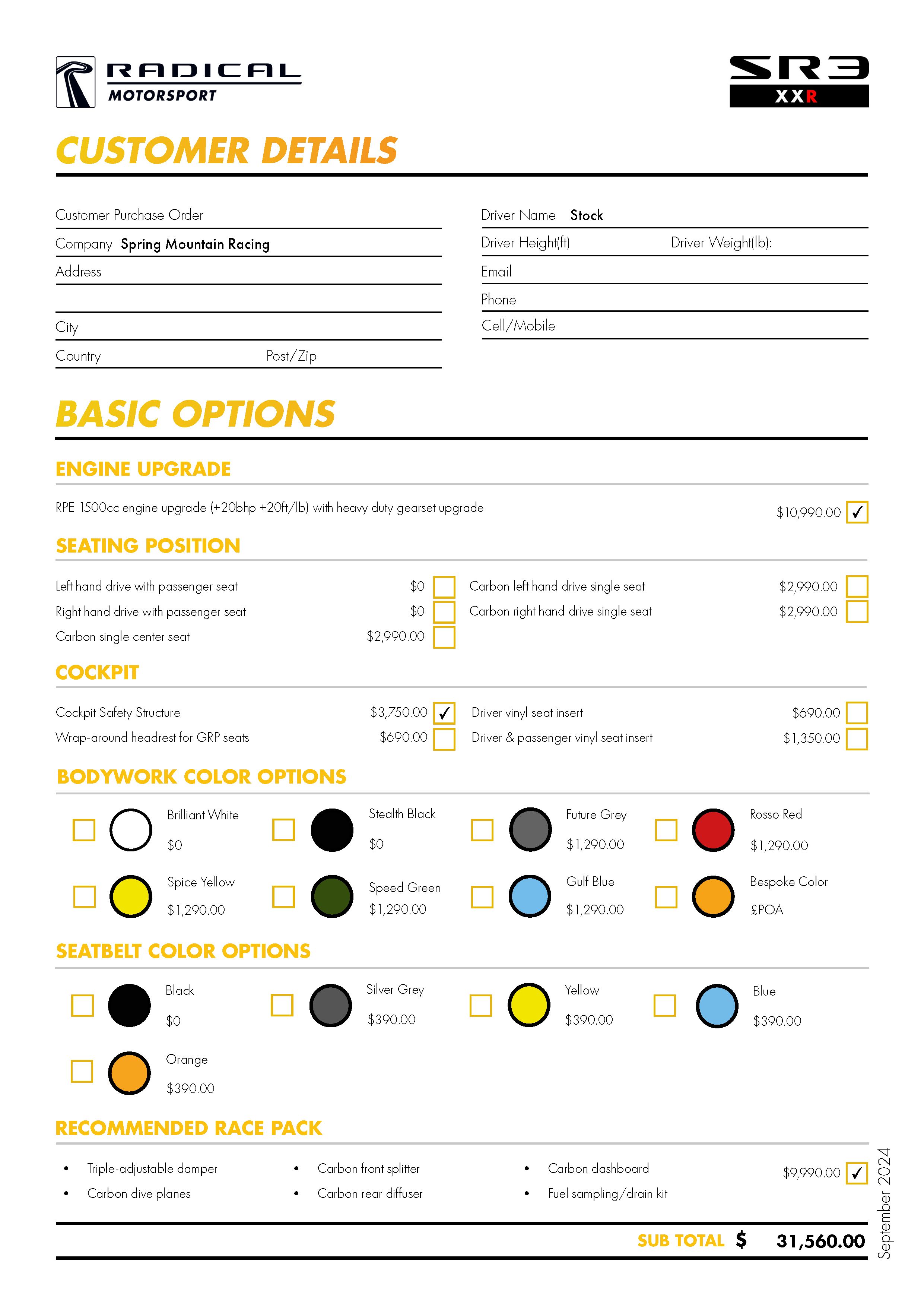

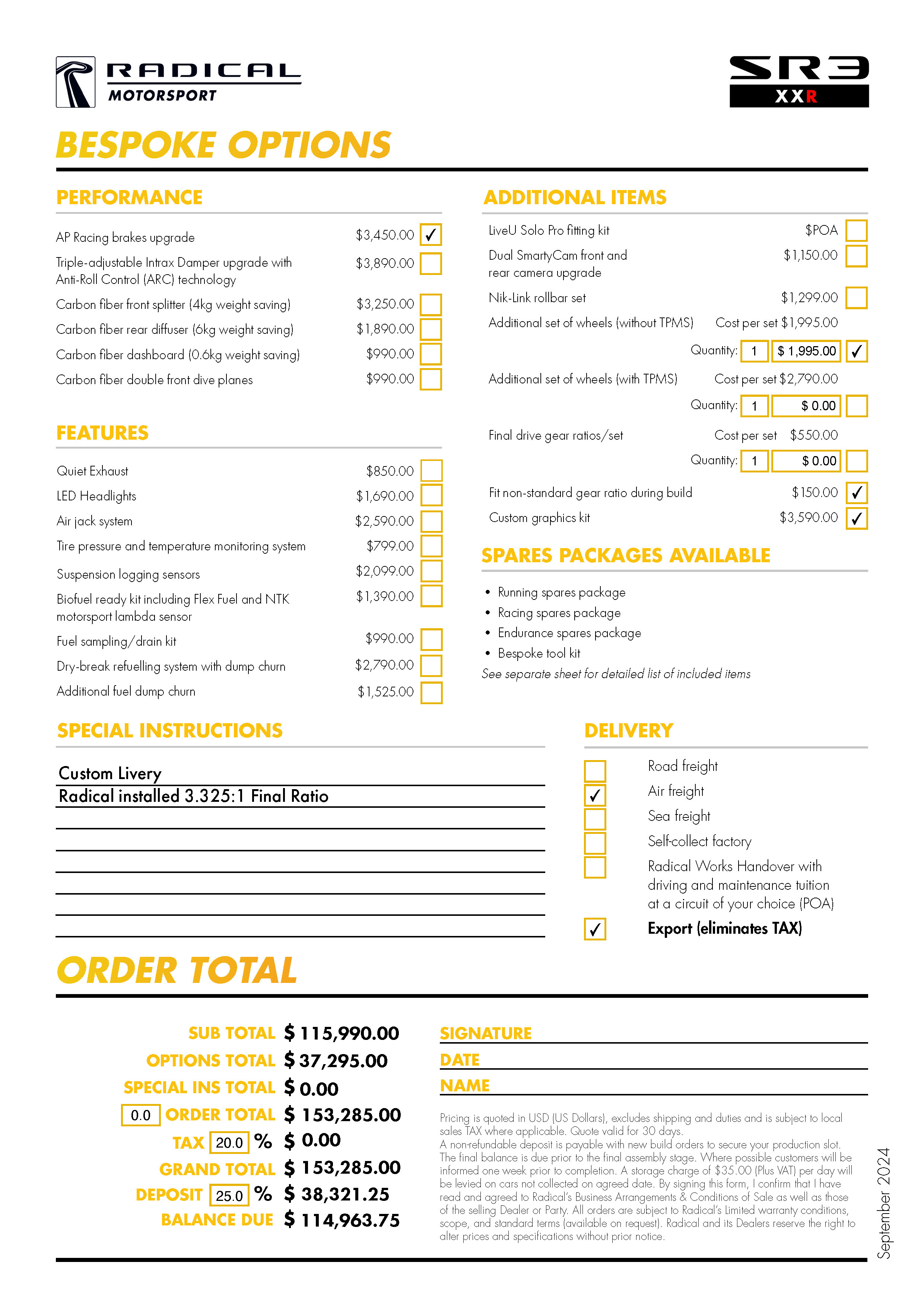

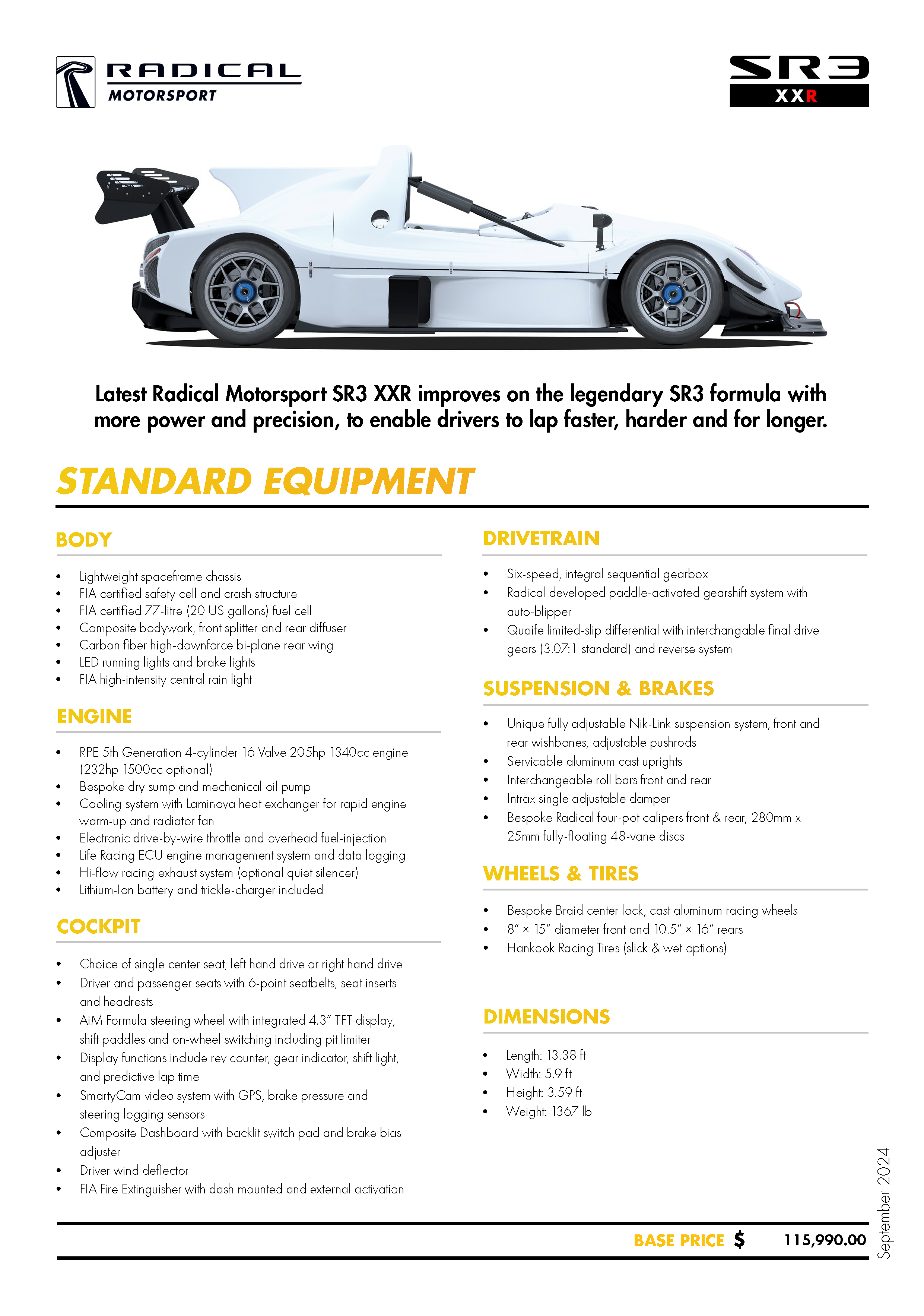

See build sheet for vehicle-specific options

BODY

•       Lightweight space frame chassis

•       FIA certified safety cell and crash structure

•       FIA certified 77-litre (20 US gallons) fuel cell

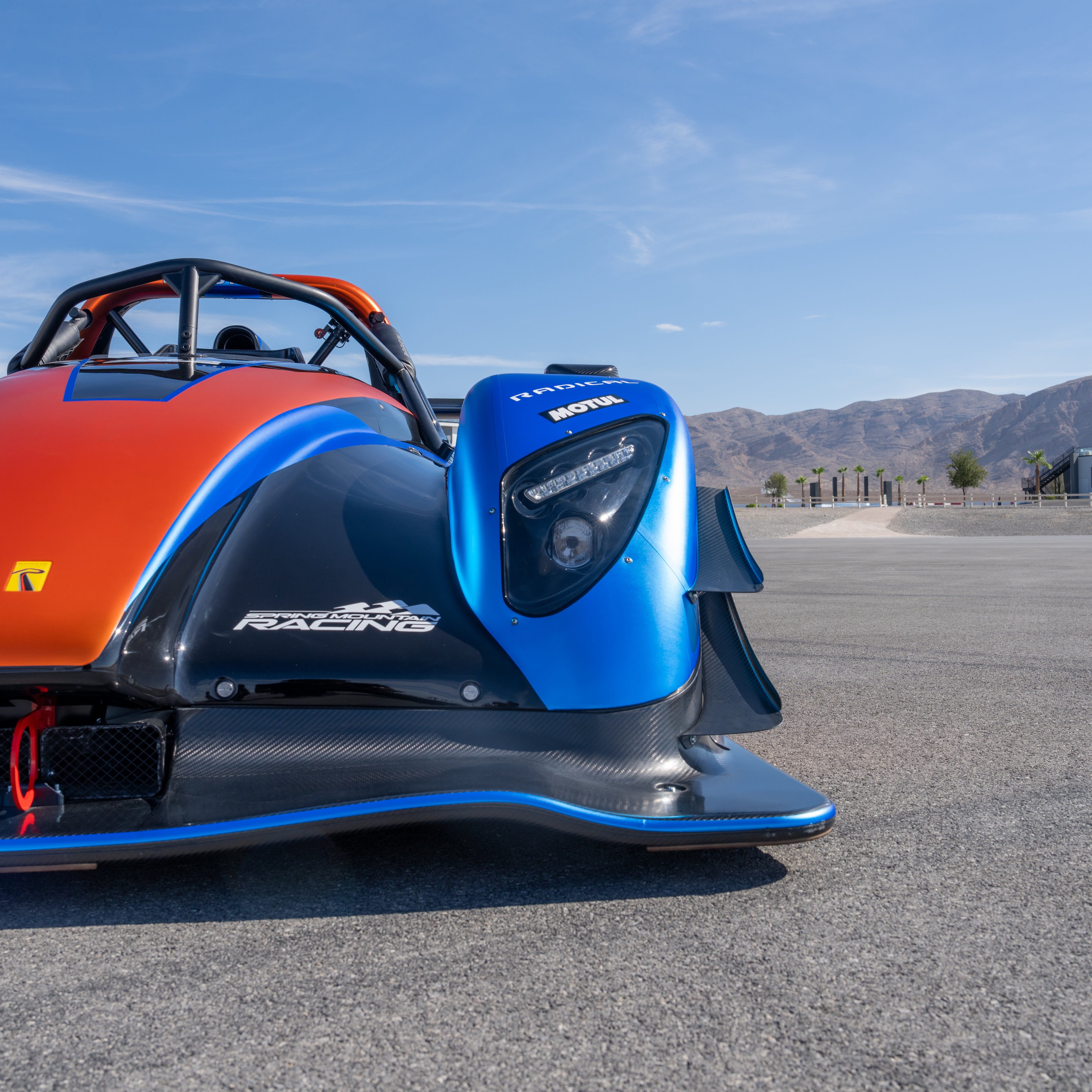

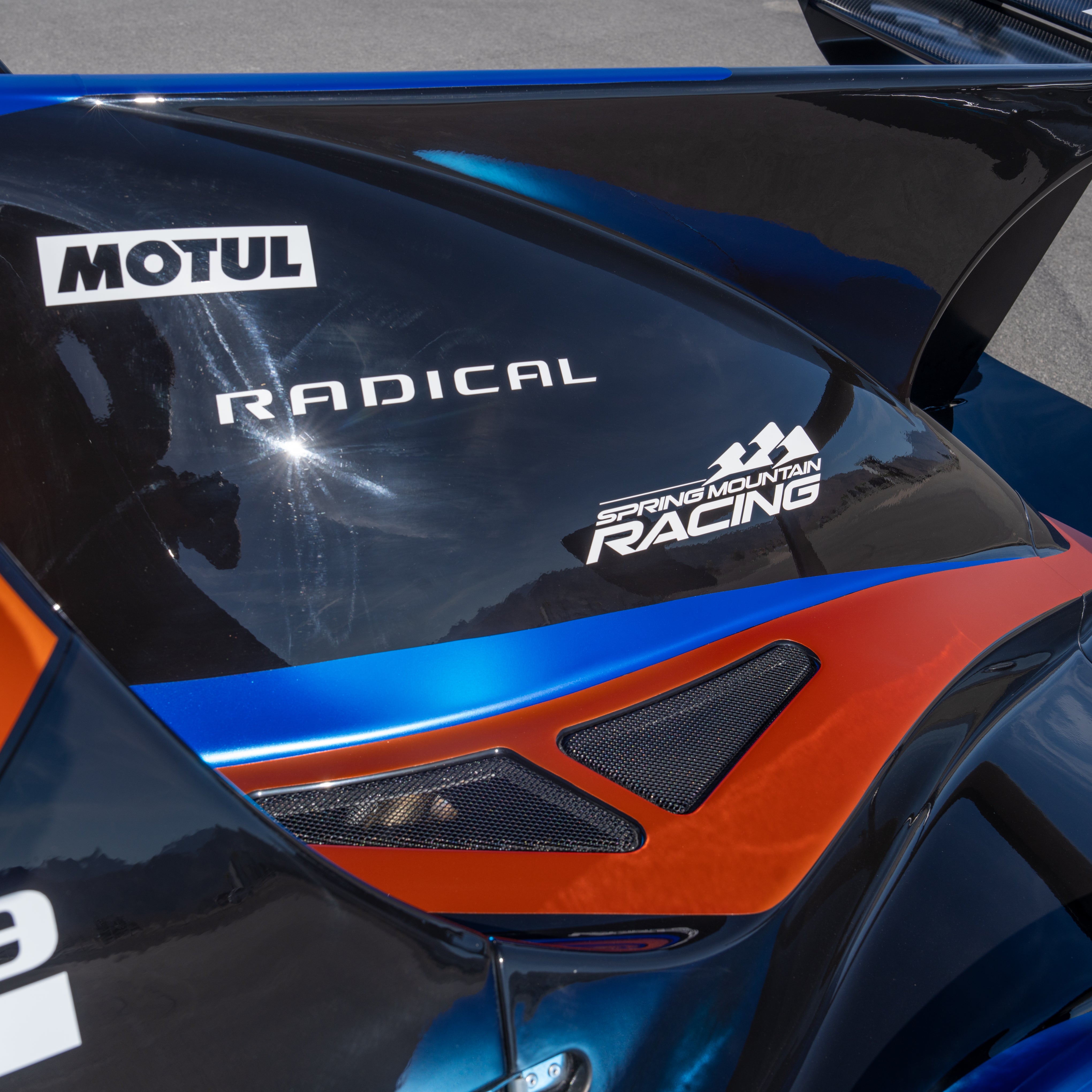

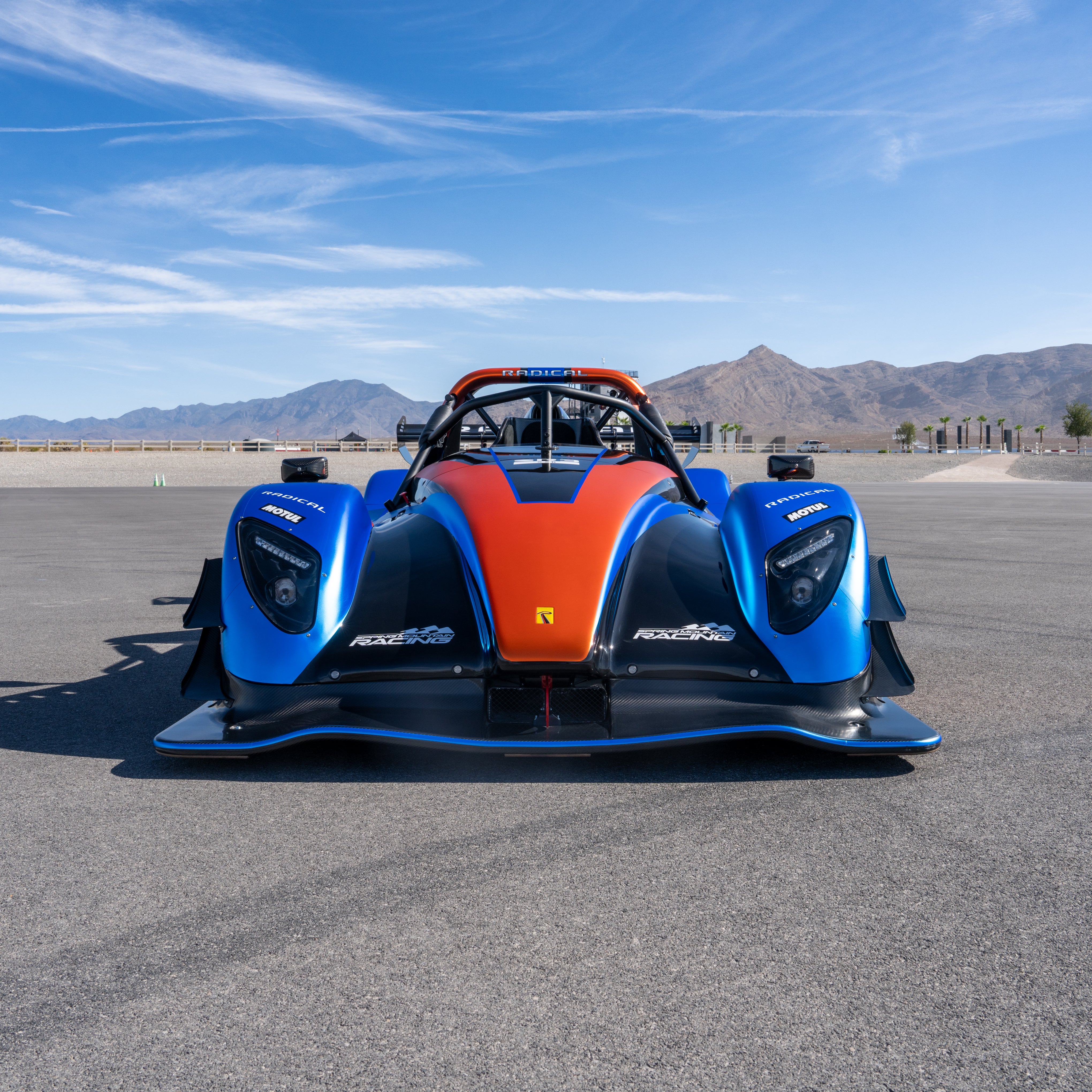

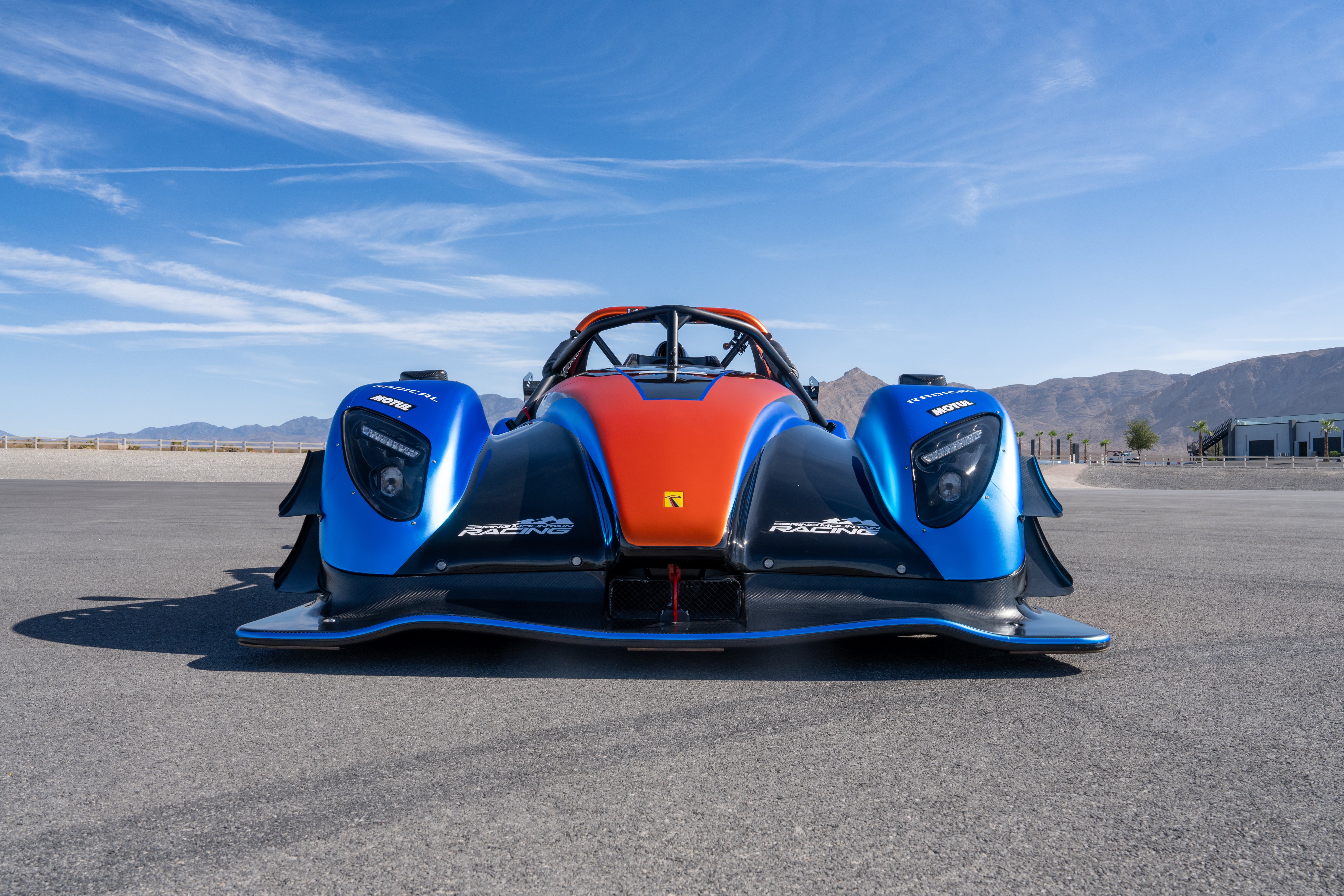

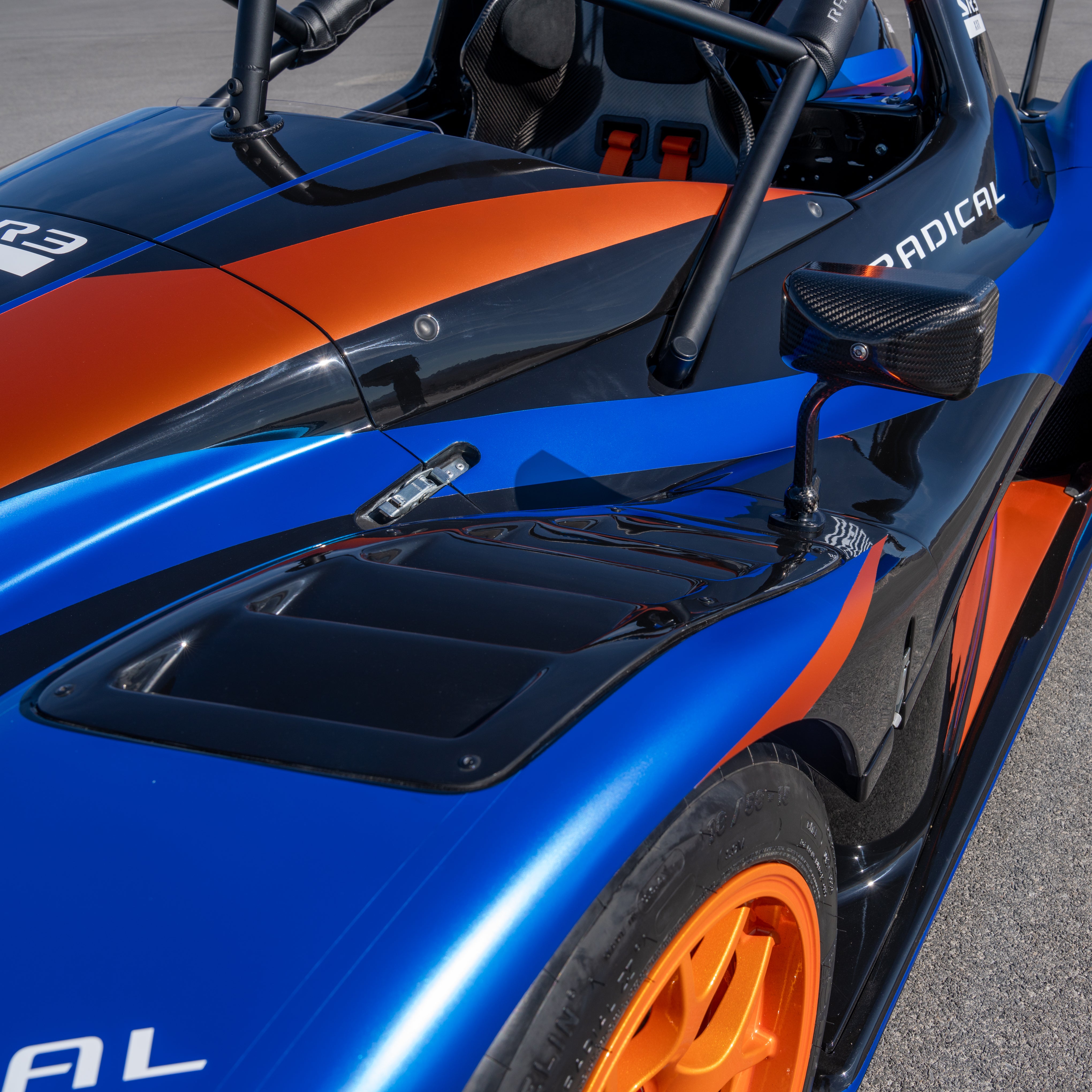

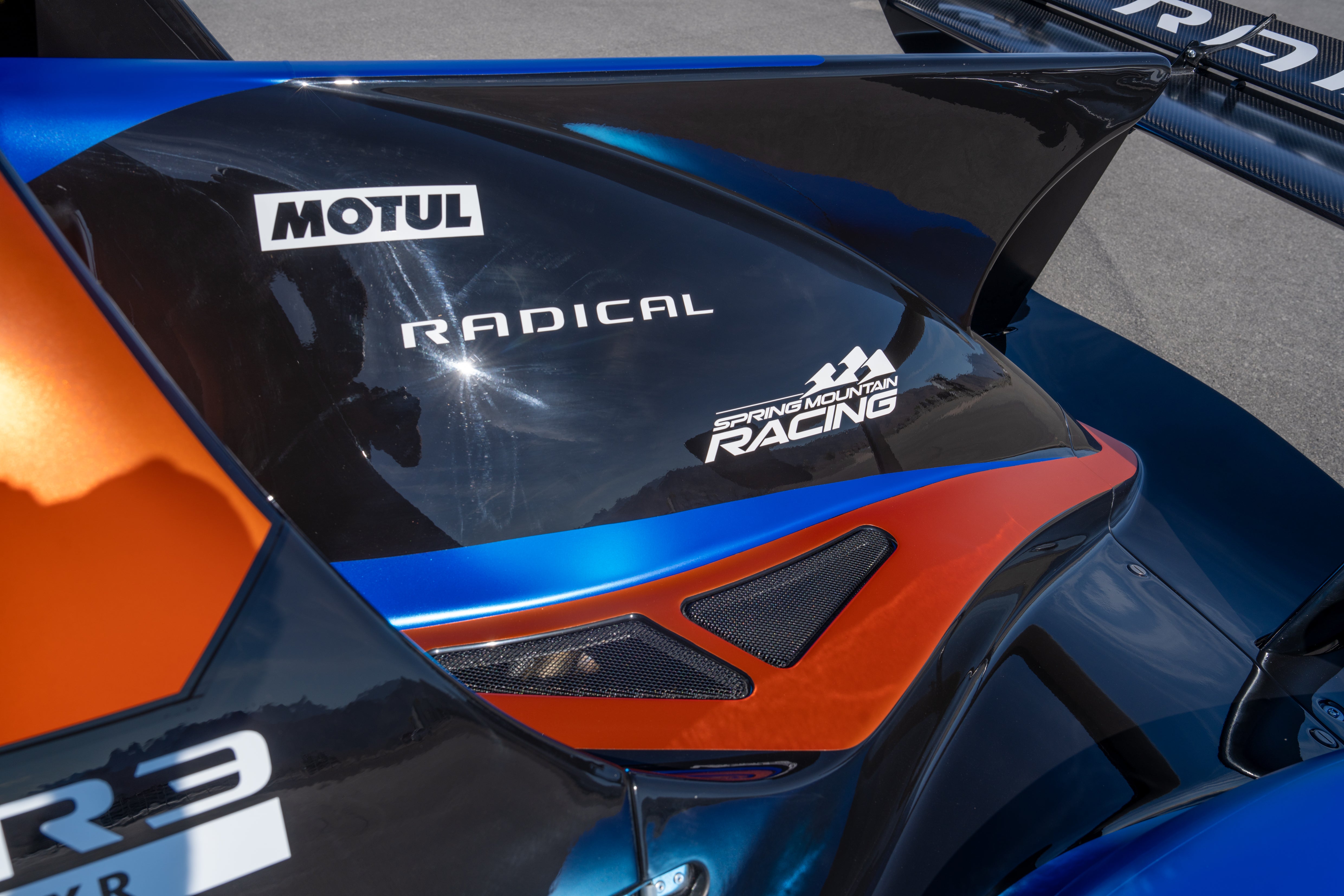

•       Composite bodywork, front splitter and rear diffuser

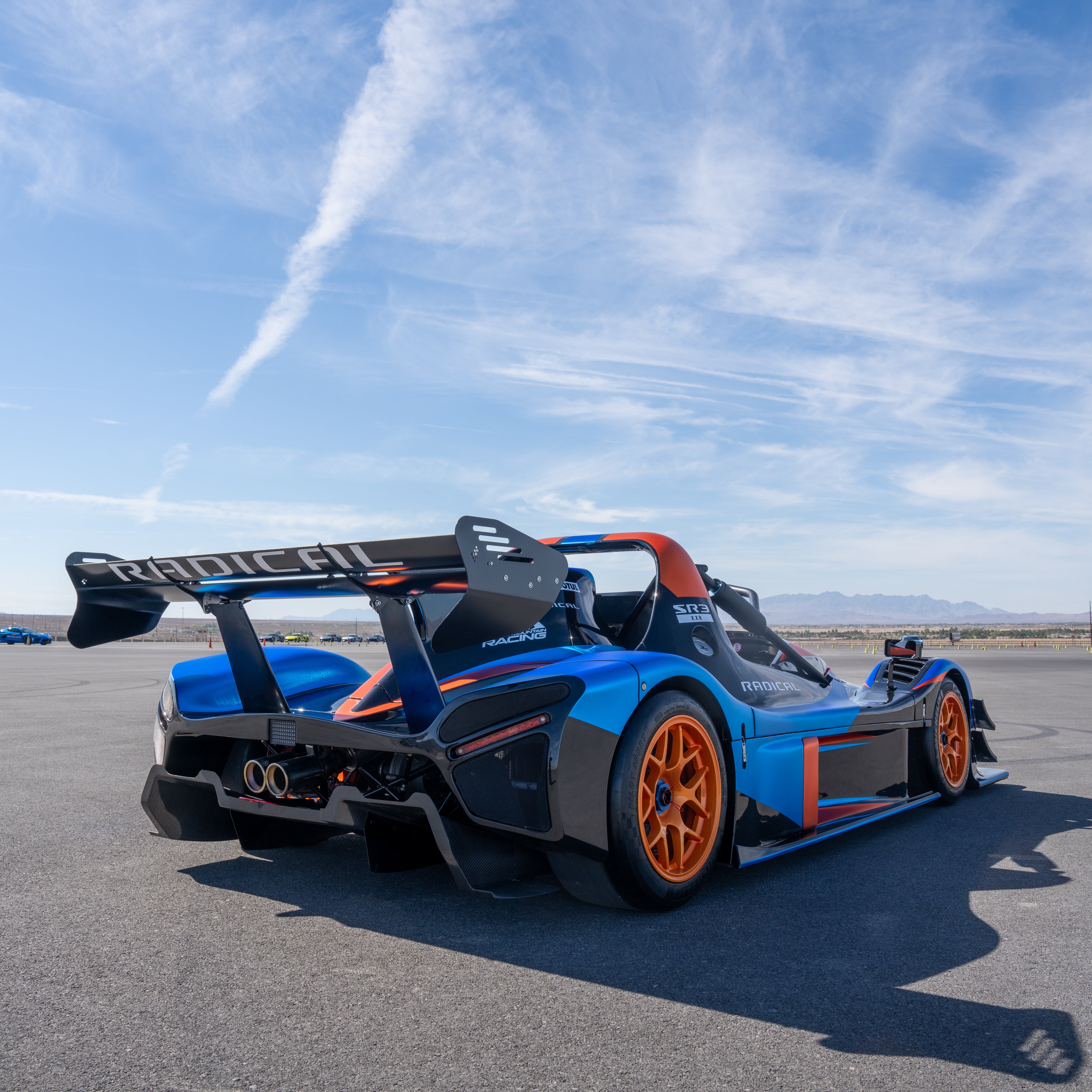

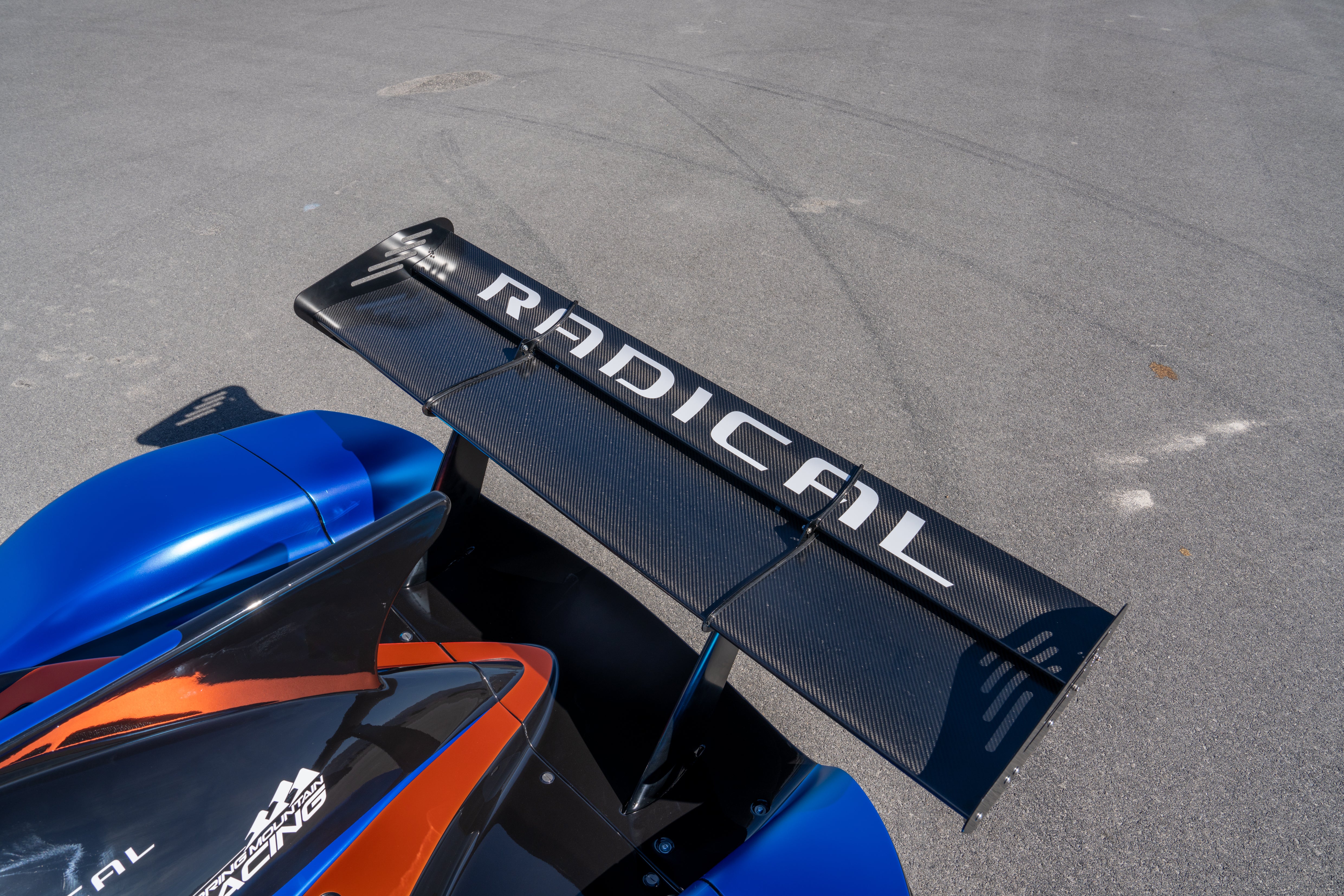

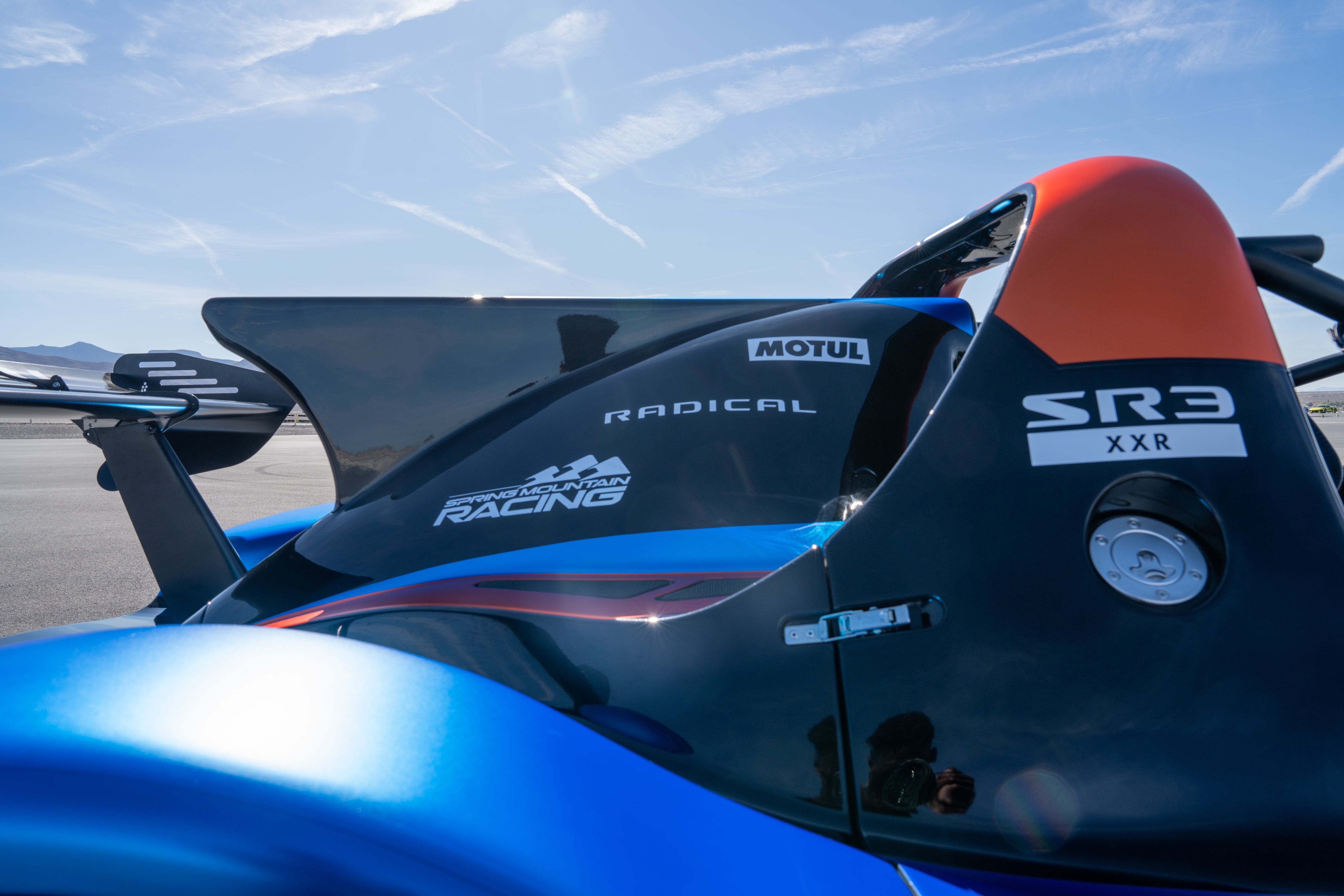

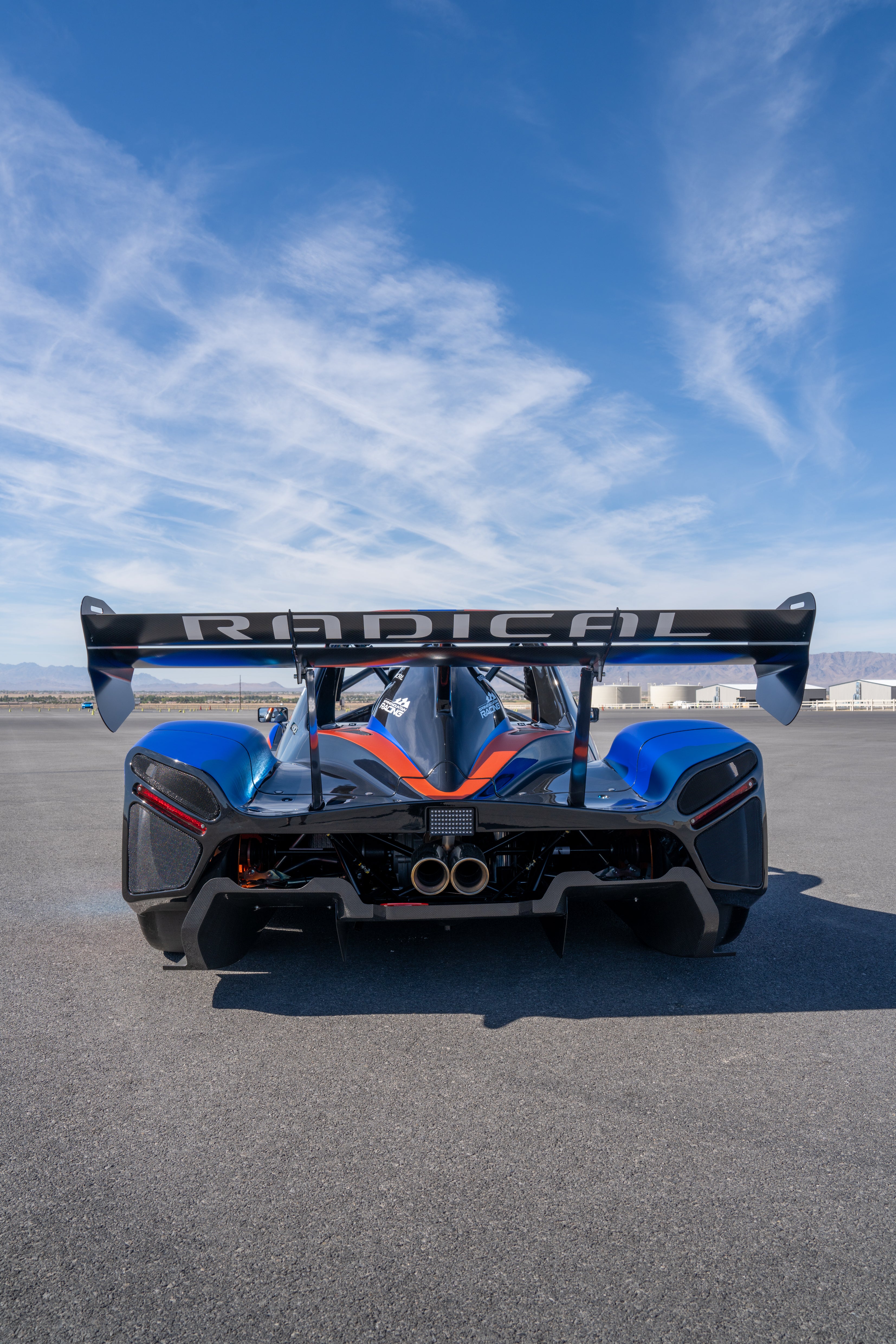

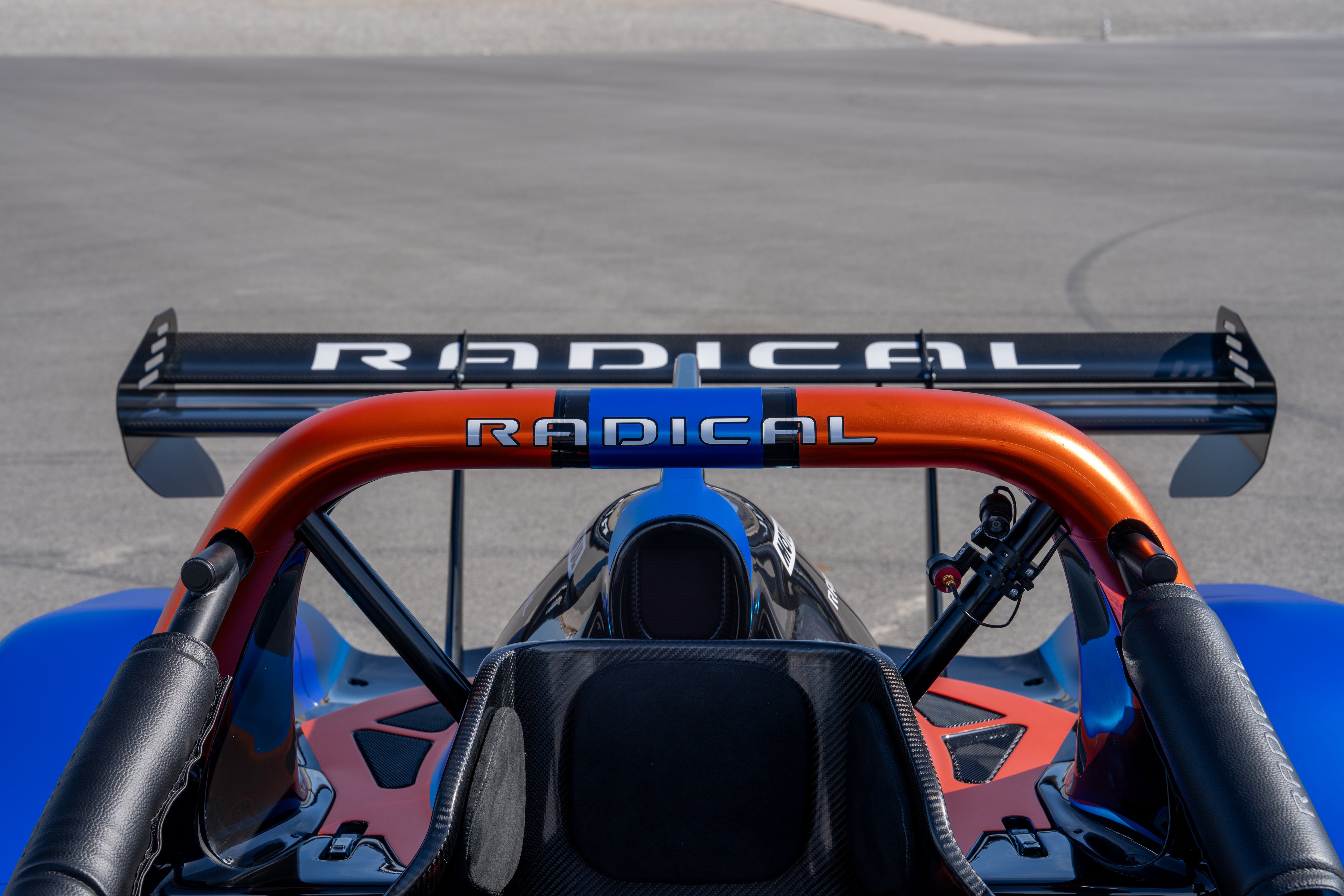

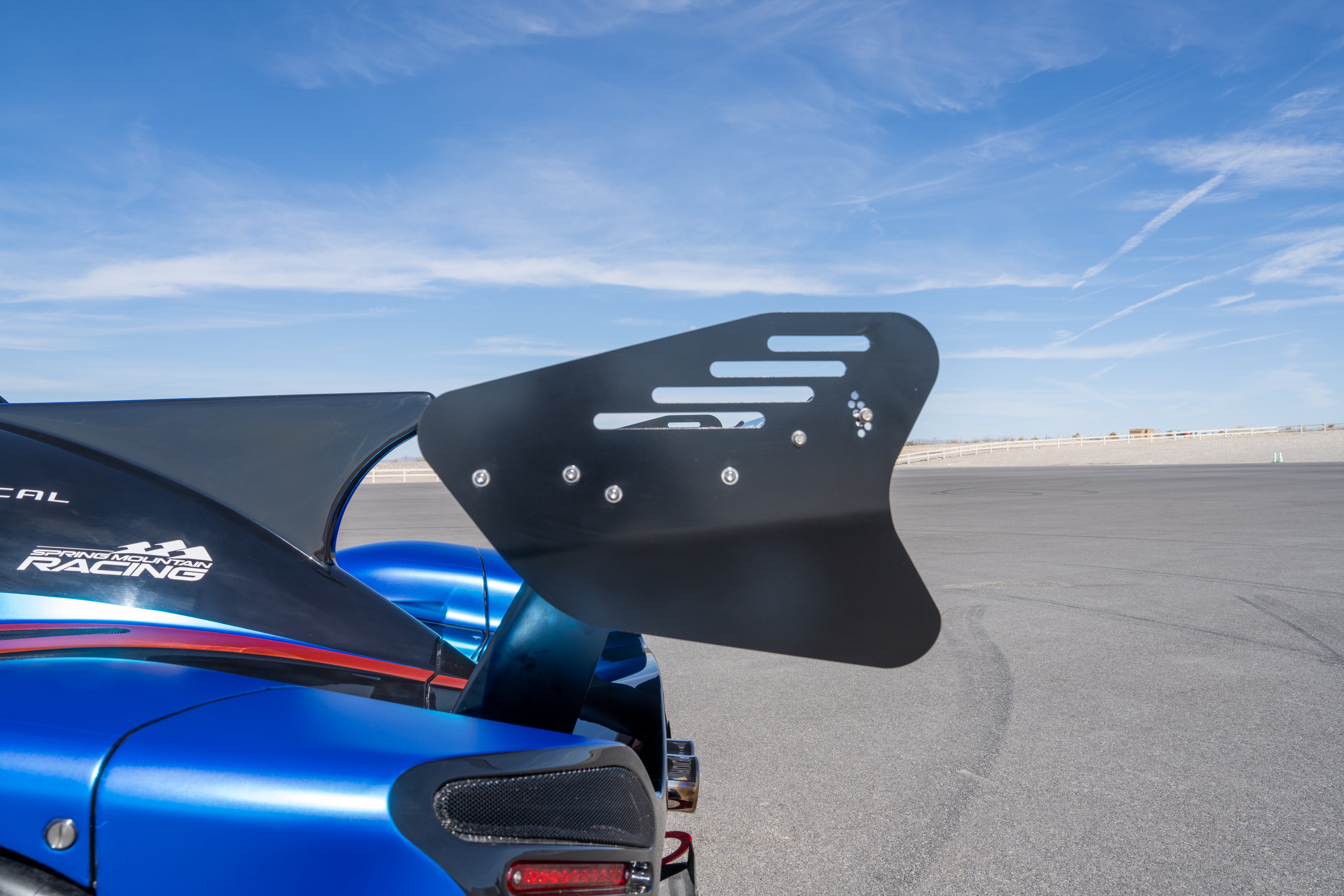

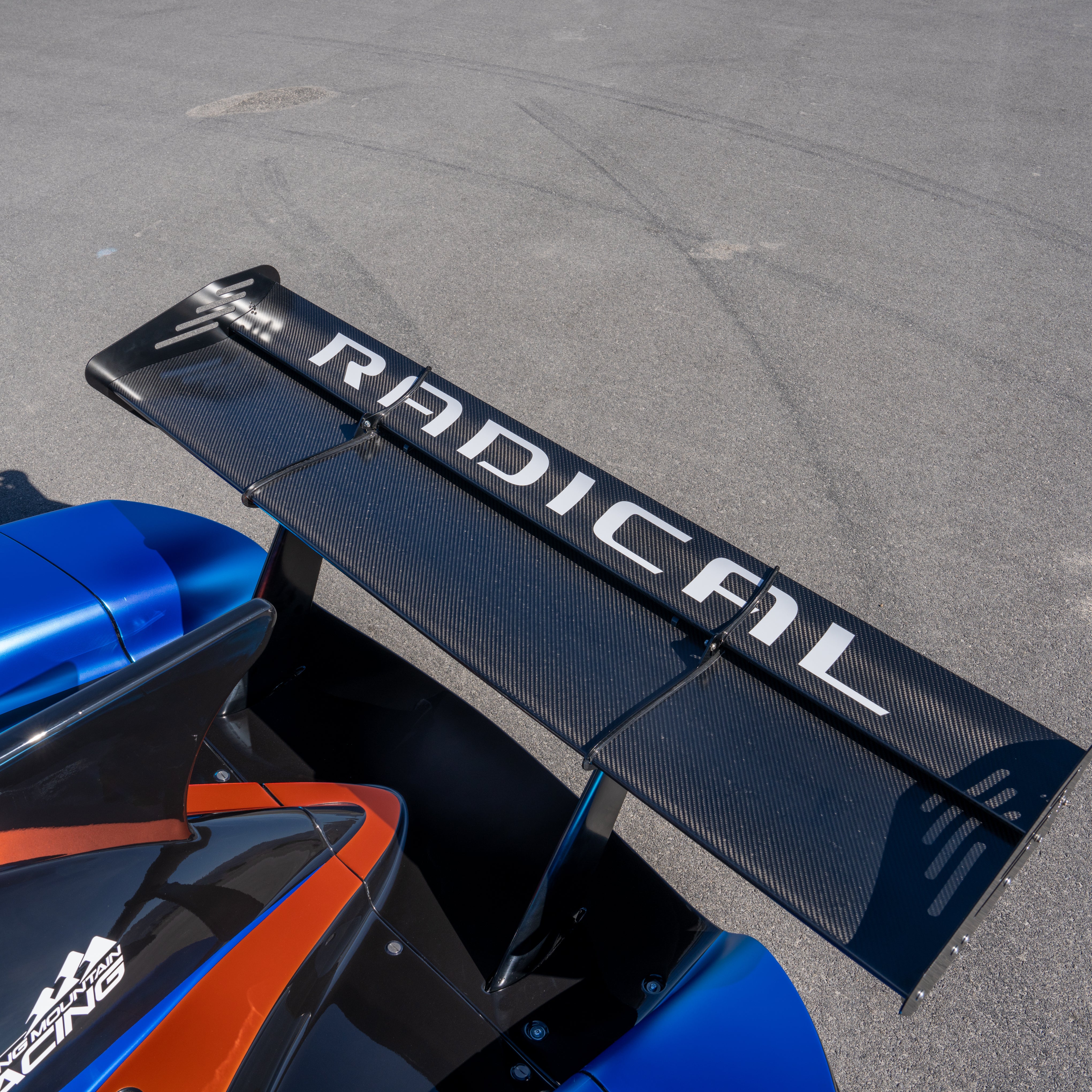

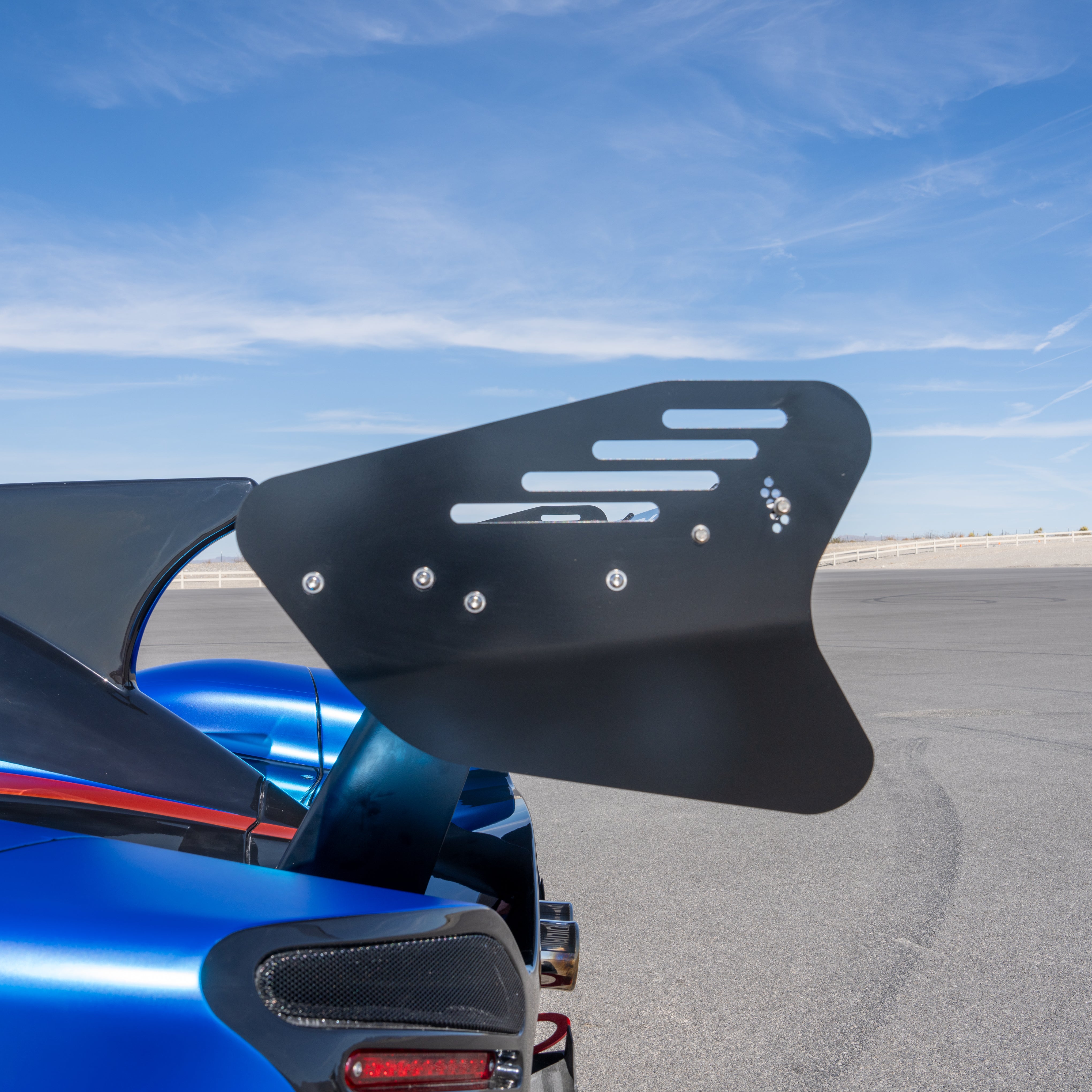

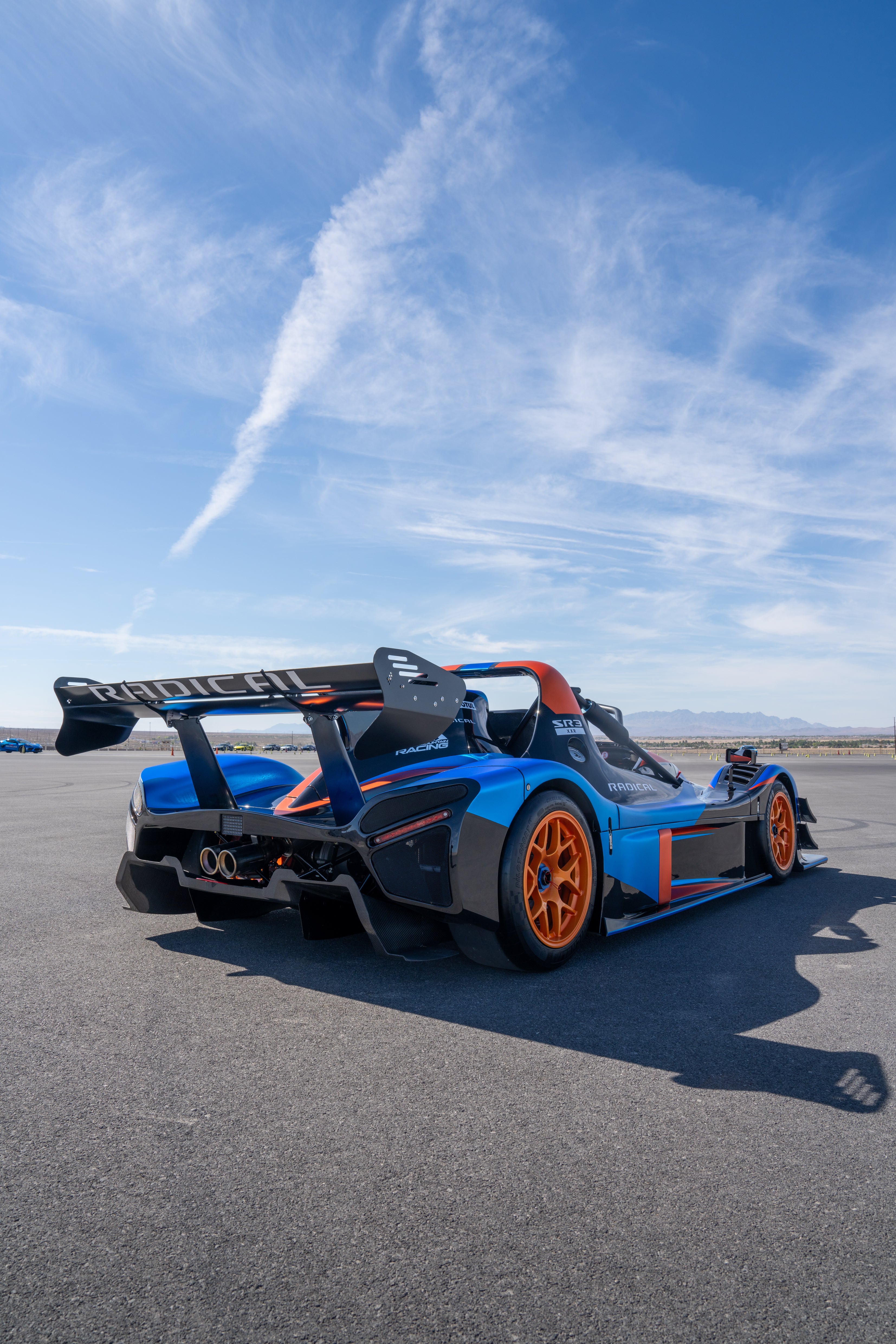

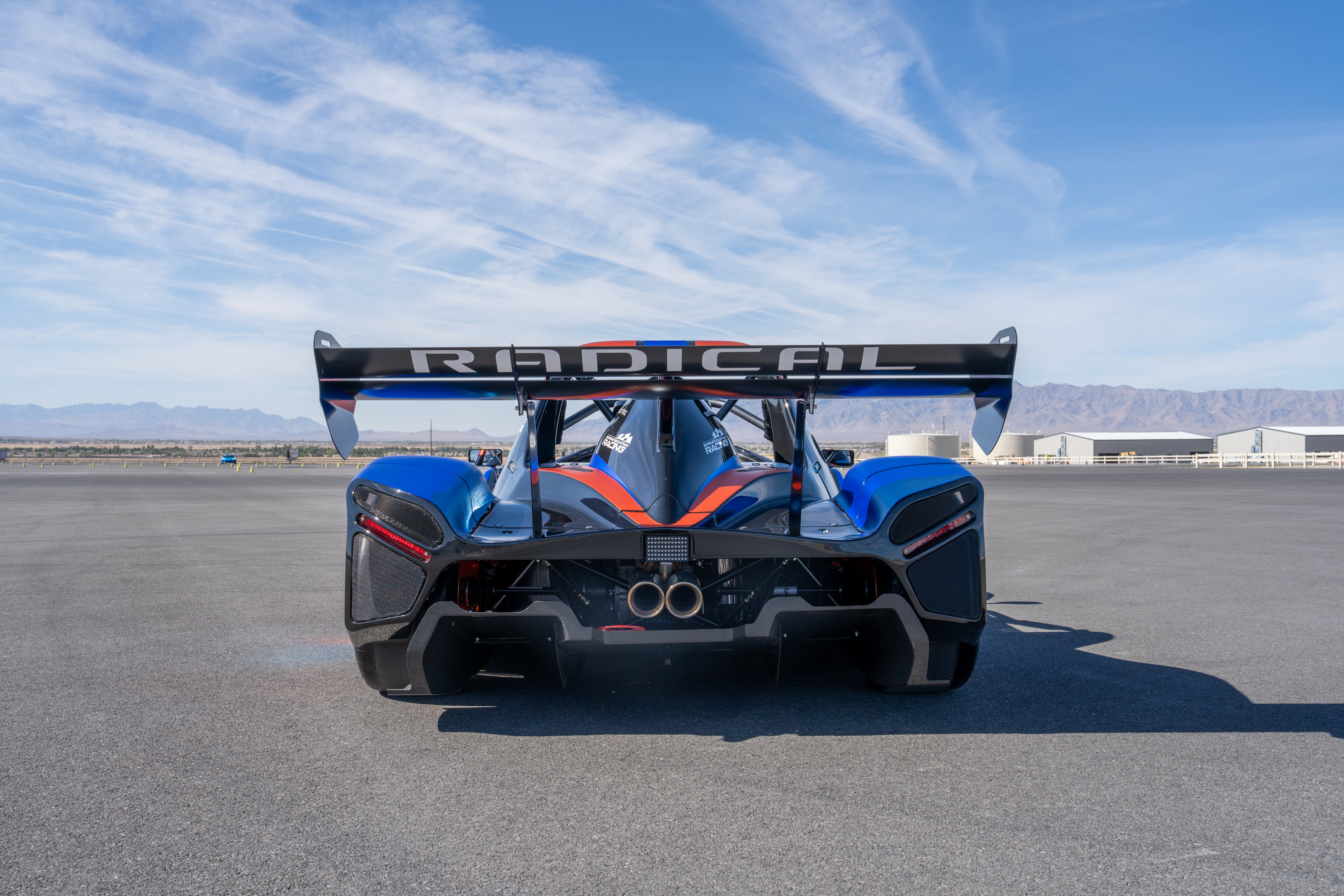

•       Carbon fibre high-downforce bi-plane rear wing

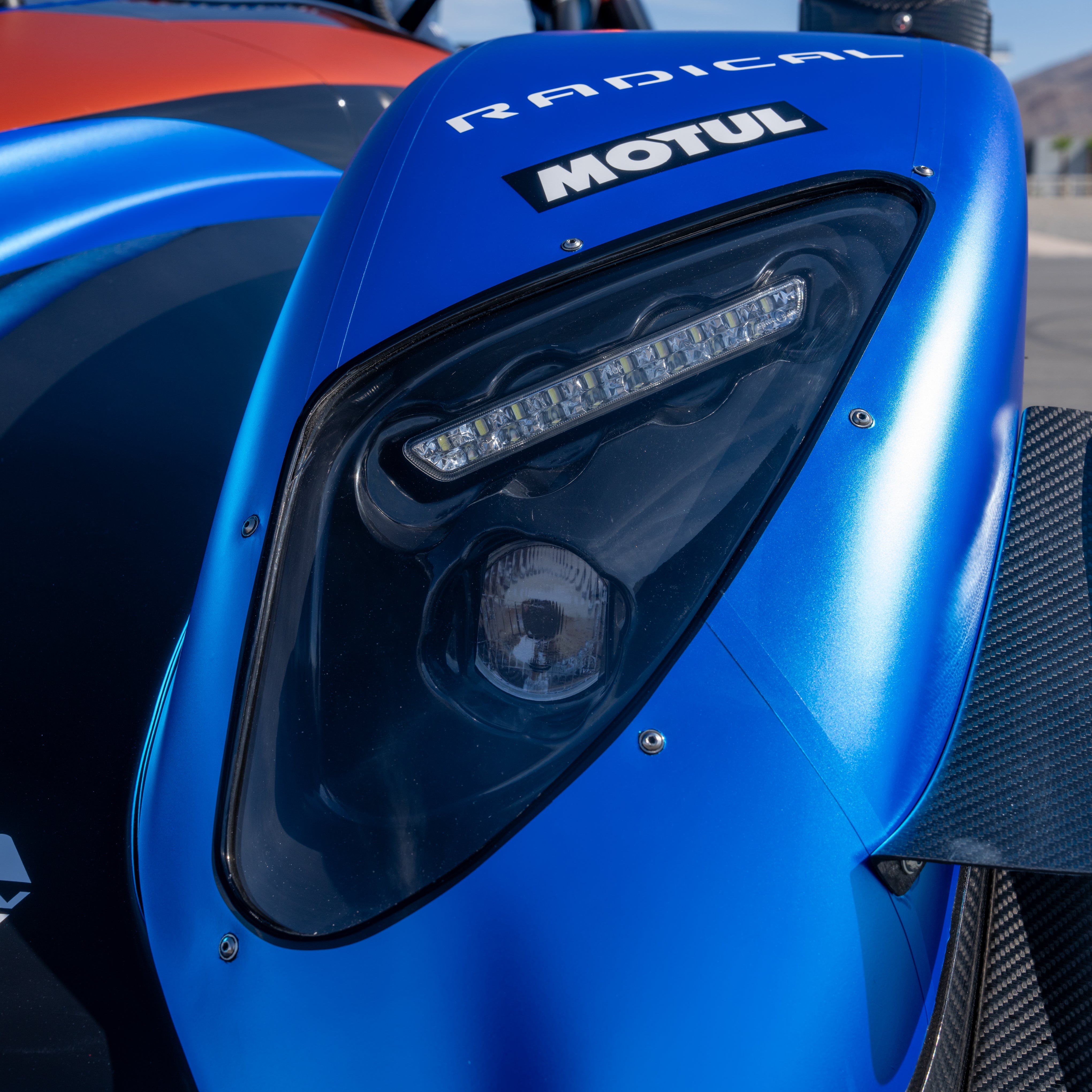

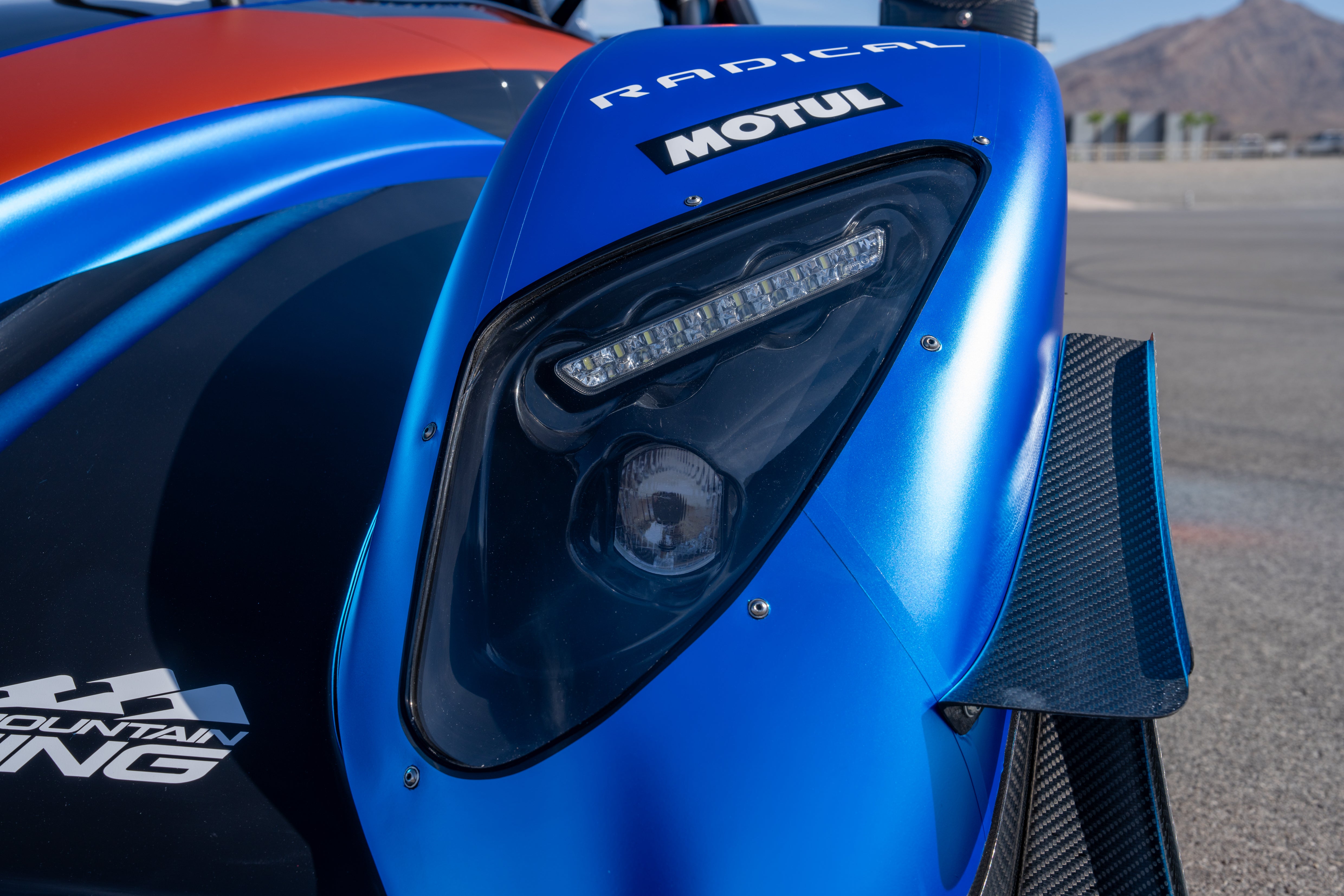

•       LED running lights and brake lights

•       FIA high-intensity central rain light

ENGINE

•       RPE 5th Generation 4-cylinder 16 Valve 205hp 1340cc engine (232hp 1500cc optional)

•       Bespoke dry sump and mechanical oil pump

•       Cooling system with Laminova heat exchanger for rapid engine warm-up and radiator fan

•       Electronic drive-by-wire throttle and overhead fuel-injection

•       Life Racing ECU engine management system and data logging

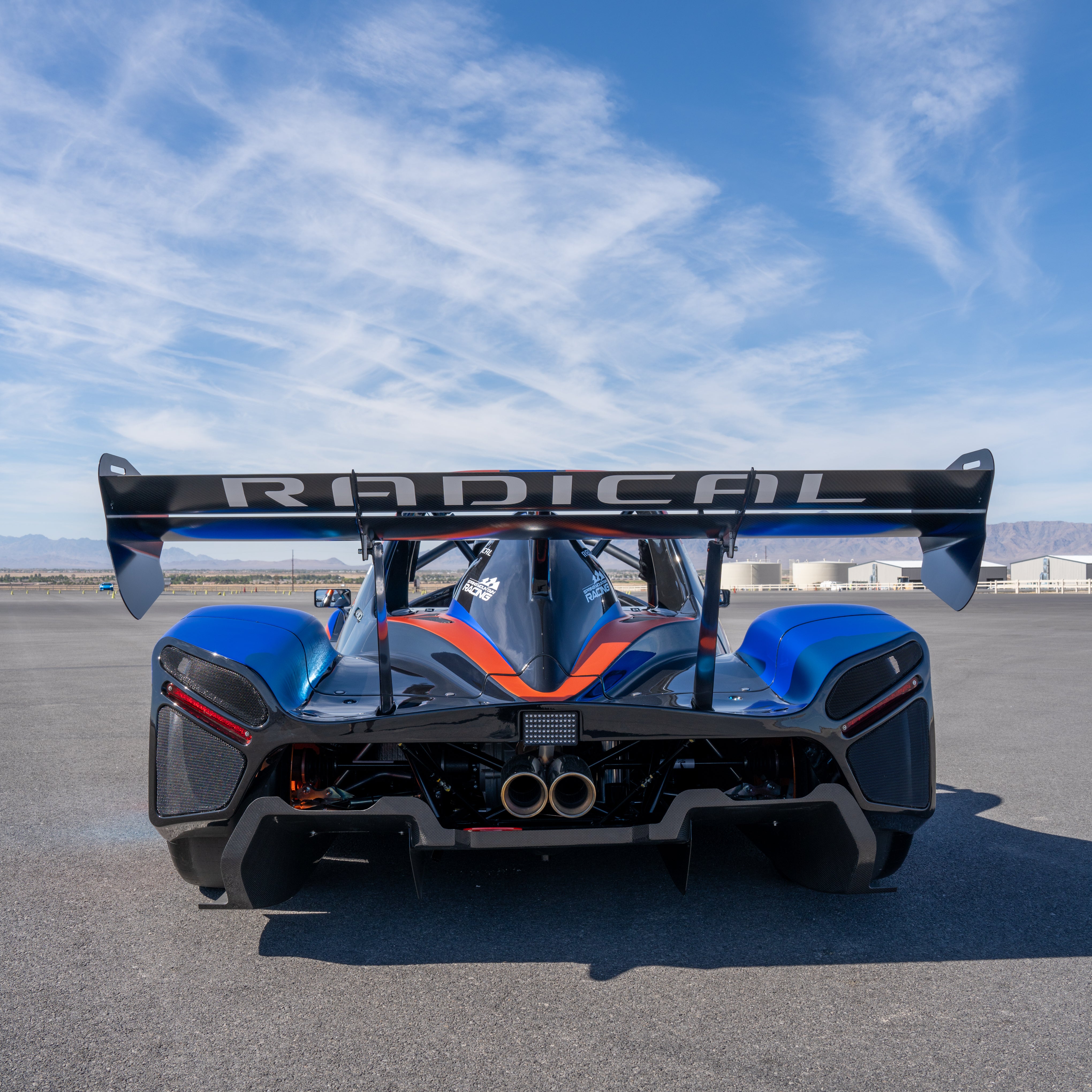

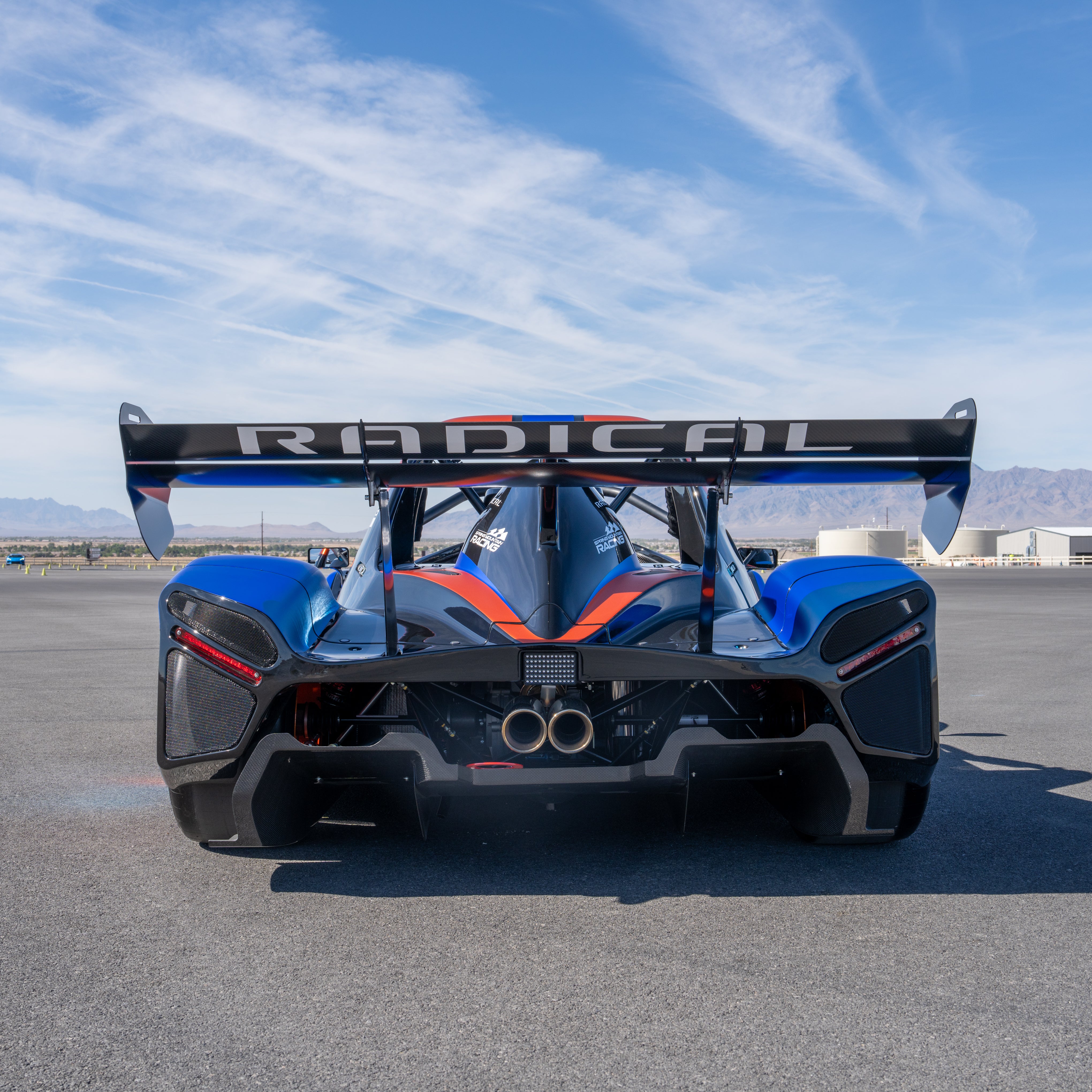

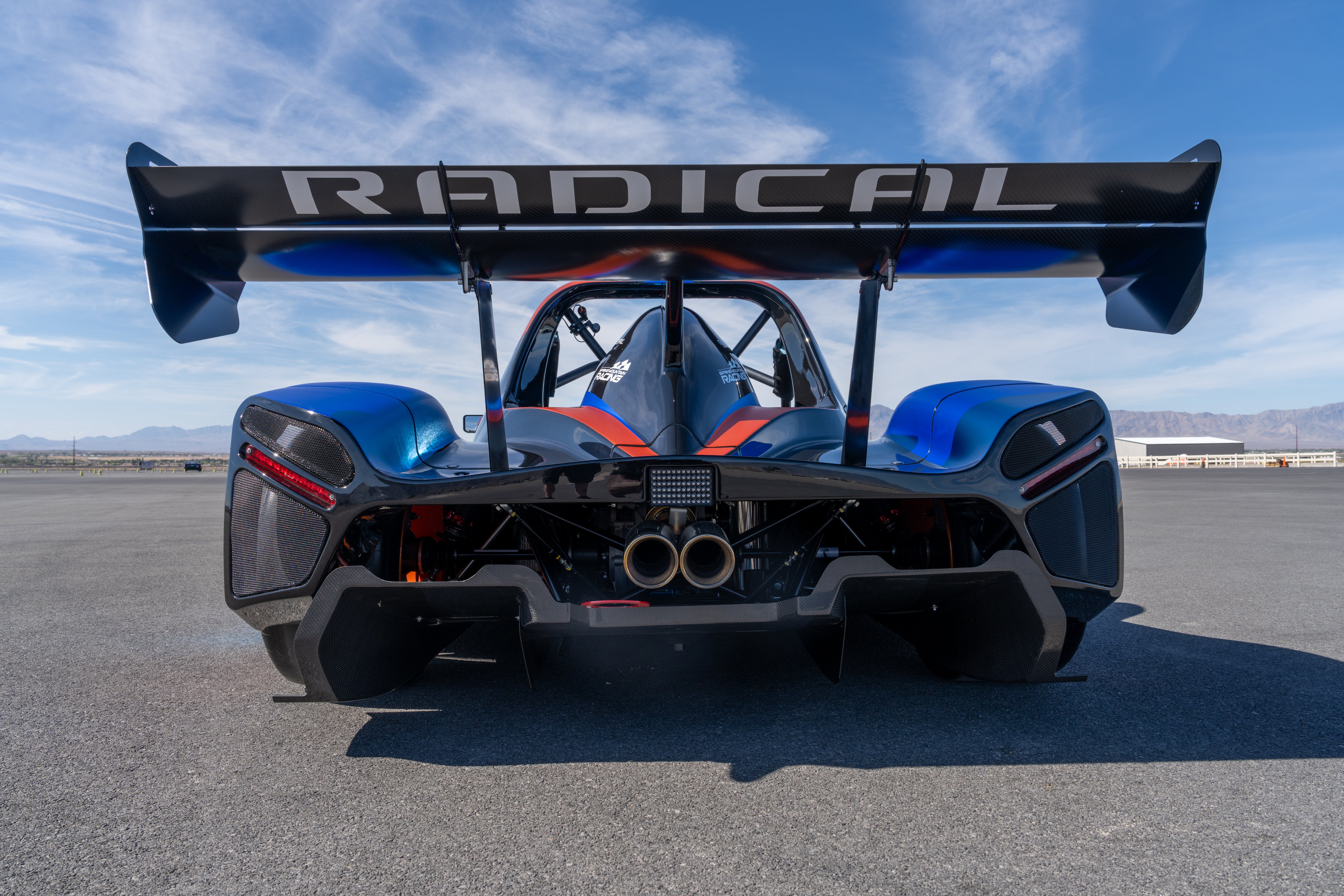

•       Hi-flow racing exhaust system (optional quiet silencer)

•       Lithium-Ion battery and trickle-charger included

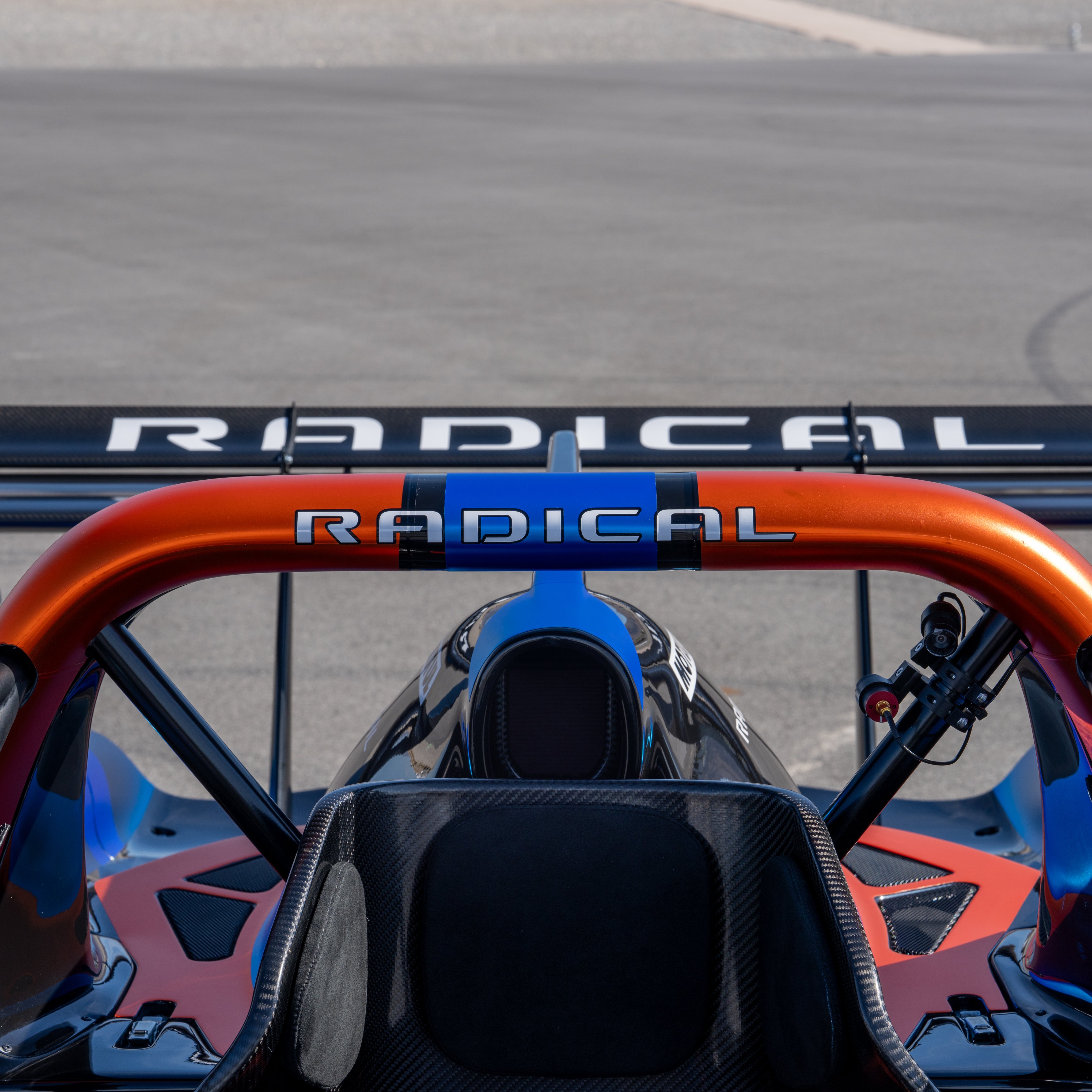

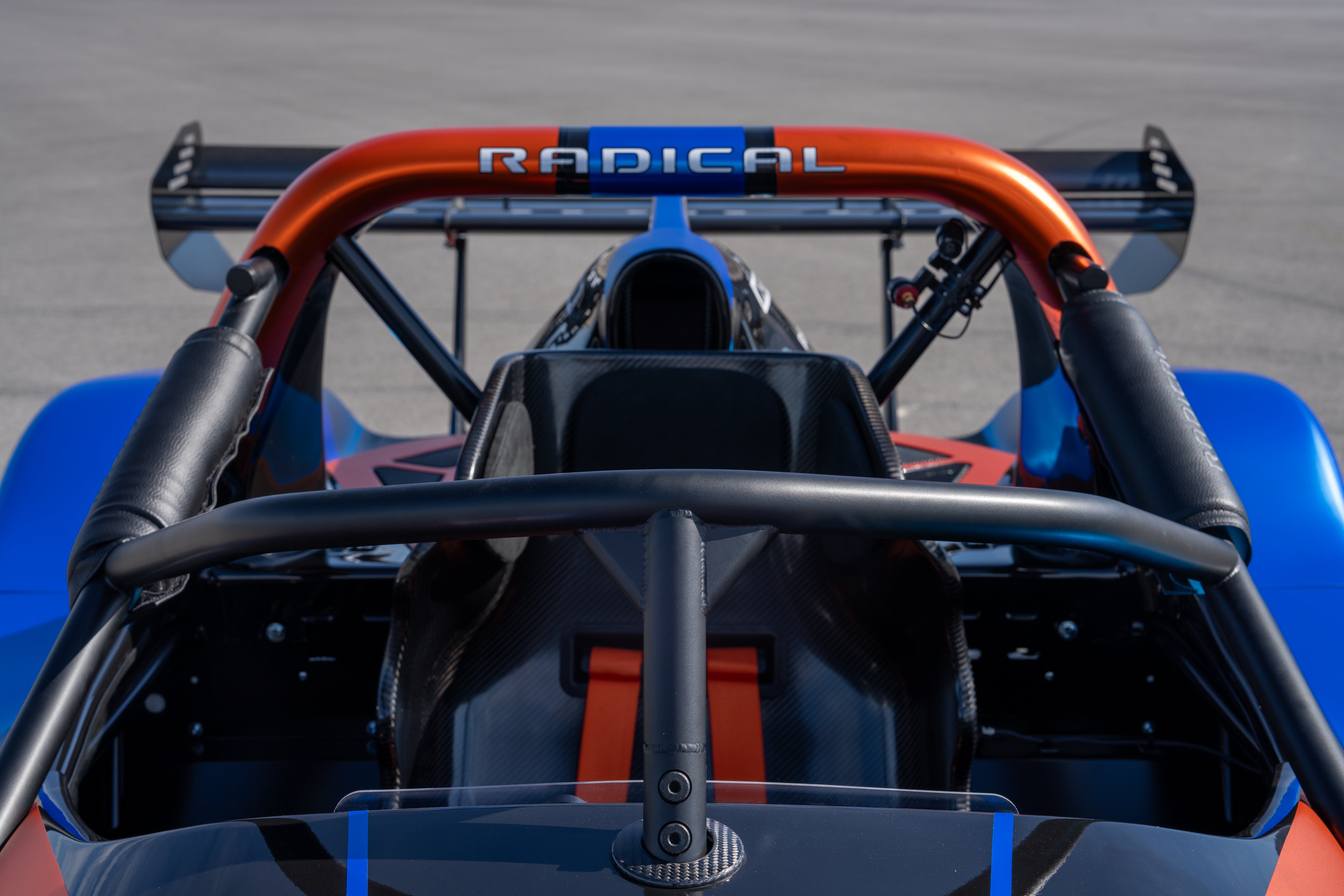

COCKPIT

•       Choice of single centre seat, left hand drive or right hand drive

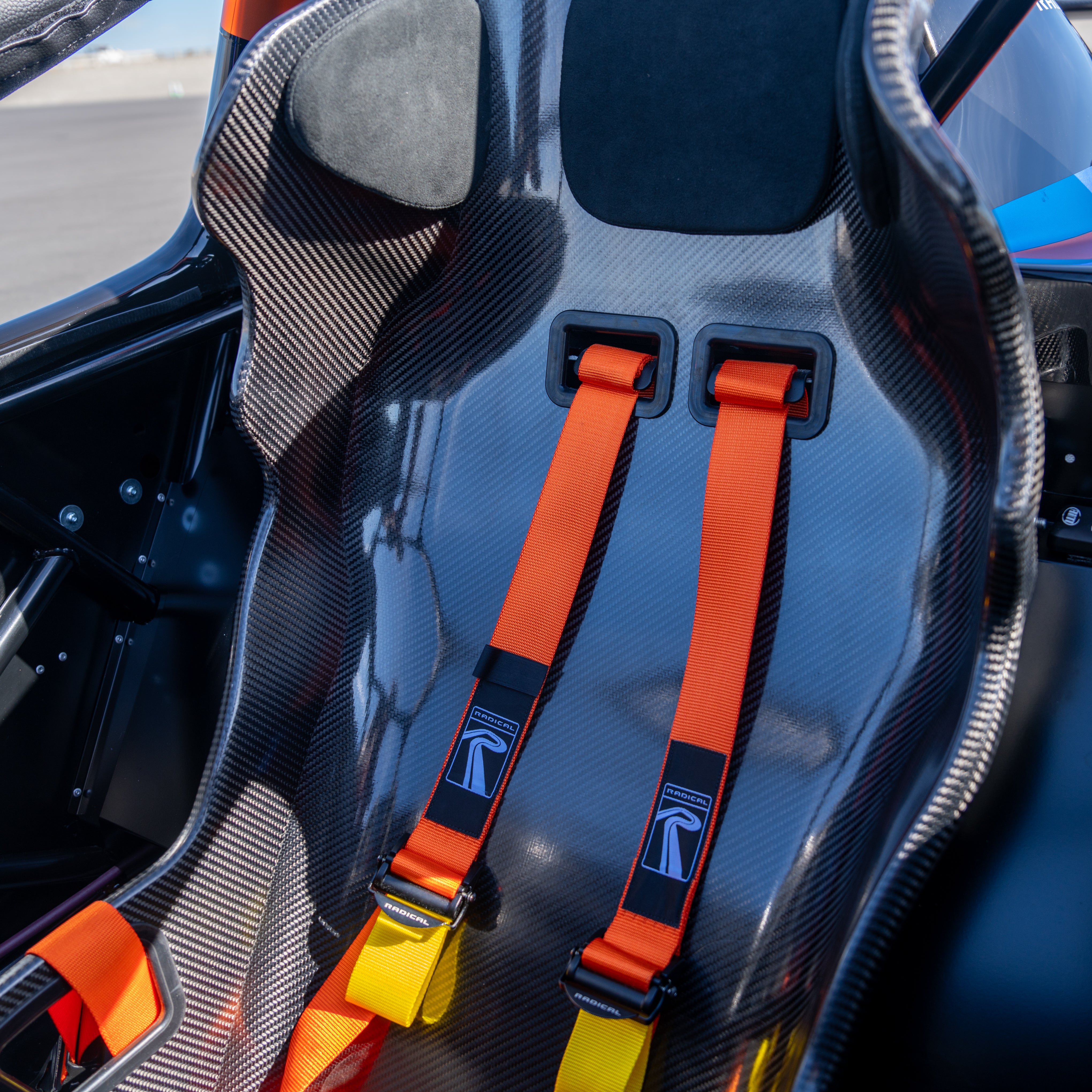

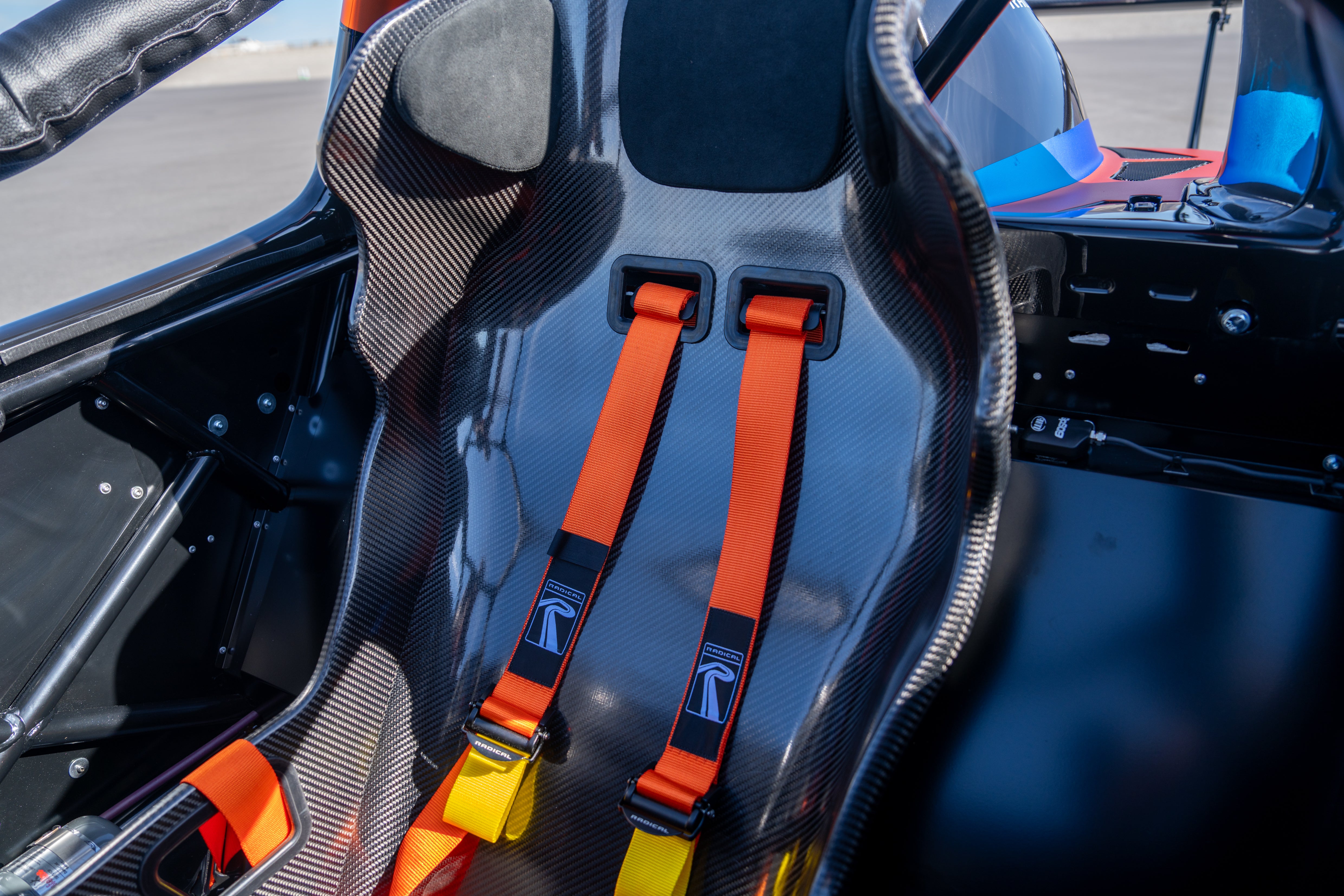

•       Driver and passenger seats with 6-point seatbelts, seat inserts and headrests

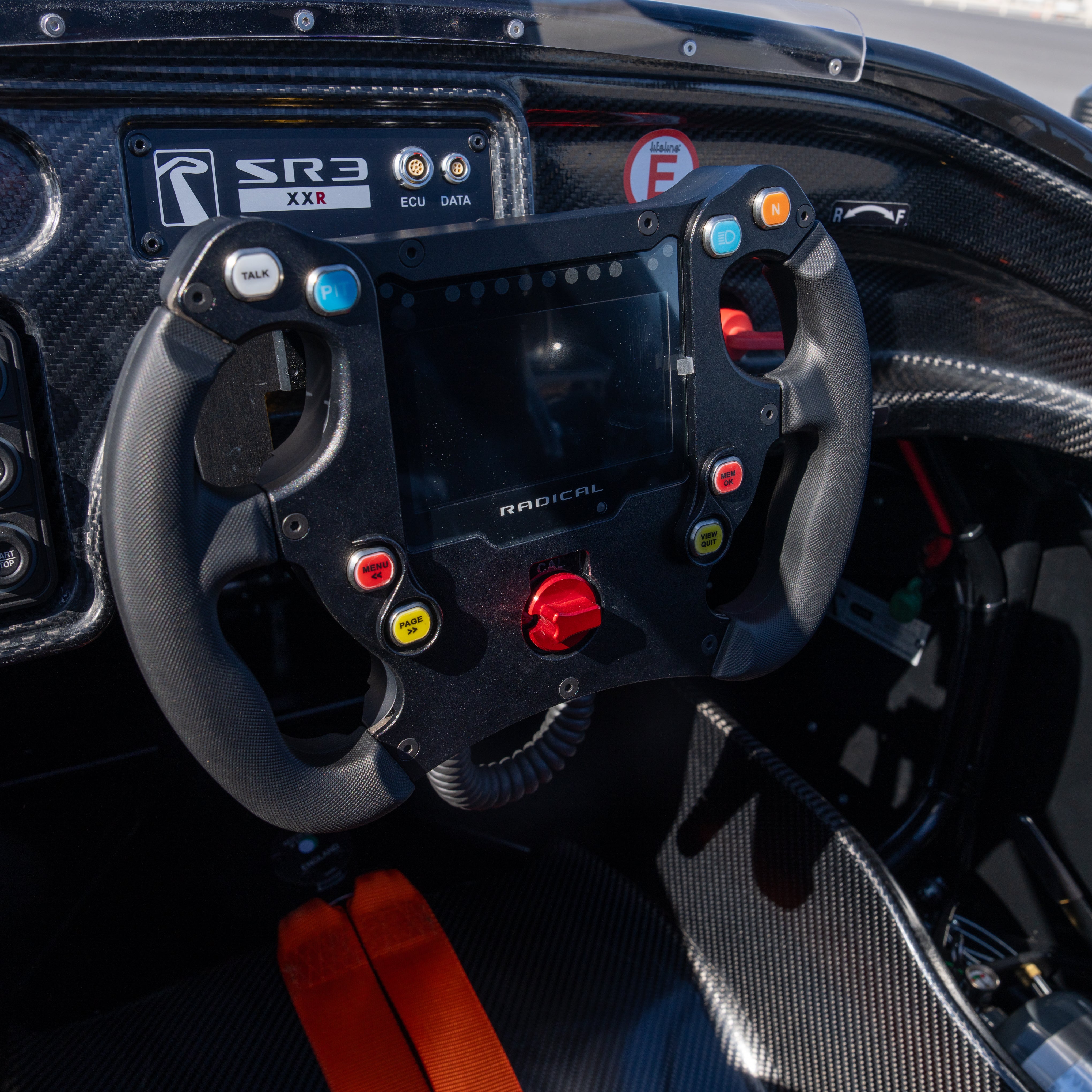

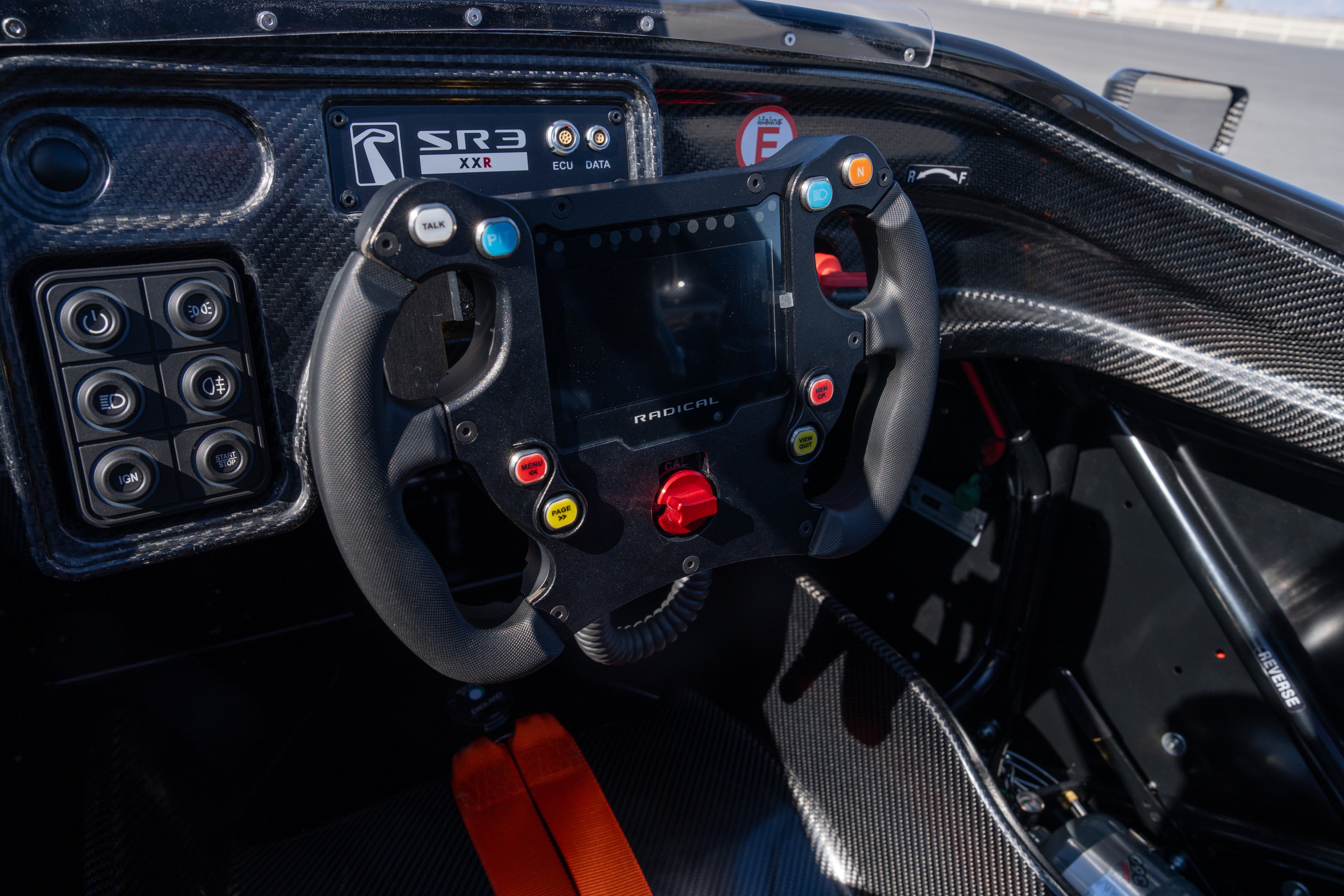

•       AiM Formula steering wheel with integrated 4.3” TFT display, shift paddles and on-wheel switching including pit limiter

•       Display functions include rev counter, gear indicator, shift light, and predictive lap time

•       SmartyCam video system with GPS, brake pressure and steering logging sensors

•       Composite Dashboard with backlit switch pad and brake bias adjuster

•       Driver wind deflector

•       FIA Fire Extinguisher with dash mounted and external activation

•       Six-speed, integral sequential gearbox

•       Radical developed paddle-activated gearshift system with auto-blipper

•       Quaife limited-slip differential with interchangeable final drive gears (3.07:1 standard) and reverse system

SUSPENSION & BRAKES

•       Unique fully adjustable Nik-Link suspension system, front and

rear wishbones, adjustable pushrods

•       Serviceable aluminium cast uprights

•       Interchangeable roll bars front and rear

•       Intrax single adjustable damper

Bespoke Radical four-pot callipers front & rear, 280mm x 25mm fully-floating 48-vane discs

WHEELS & TYRES

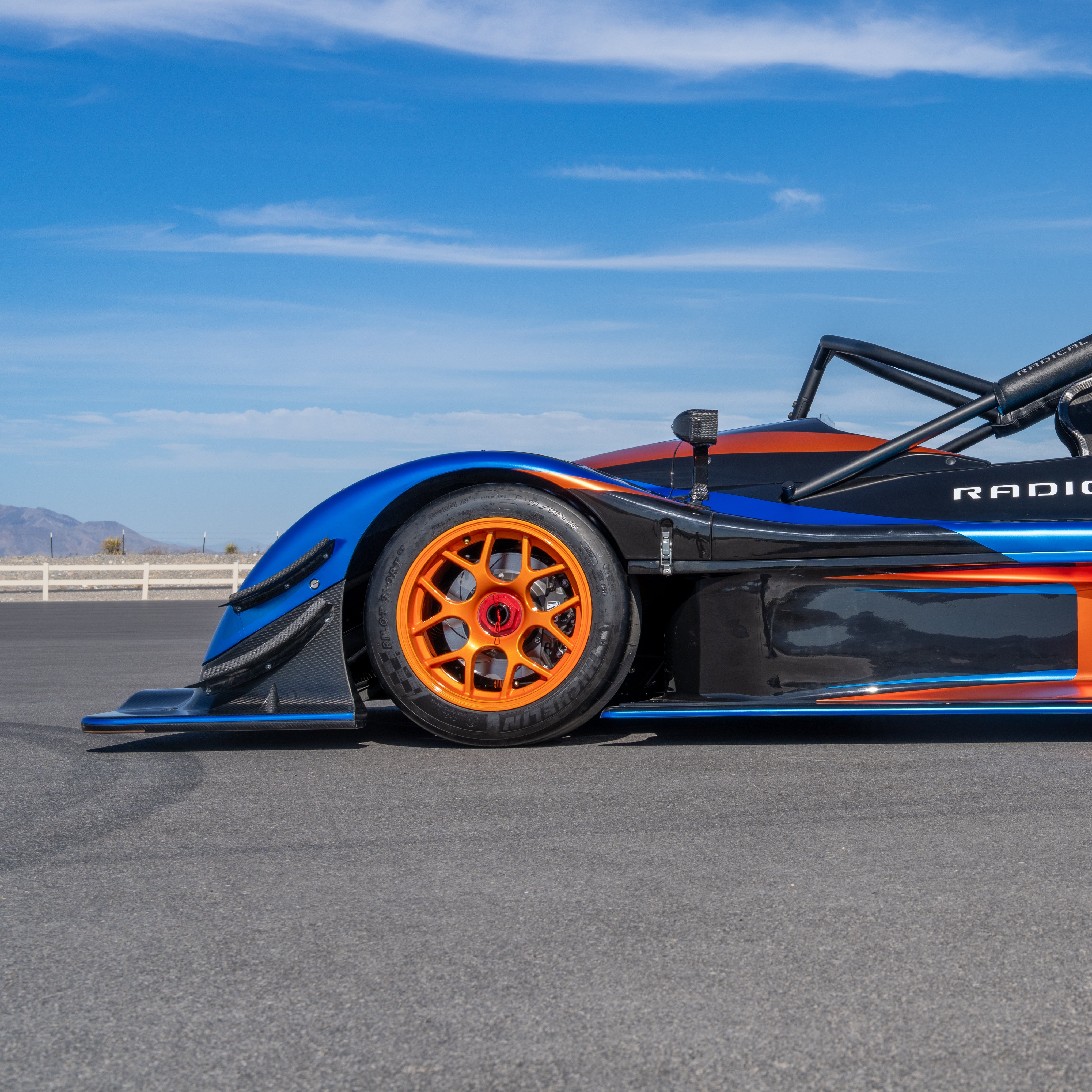

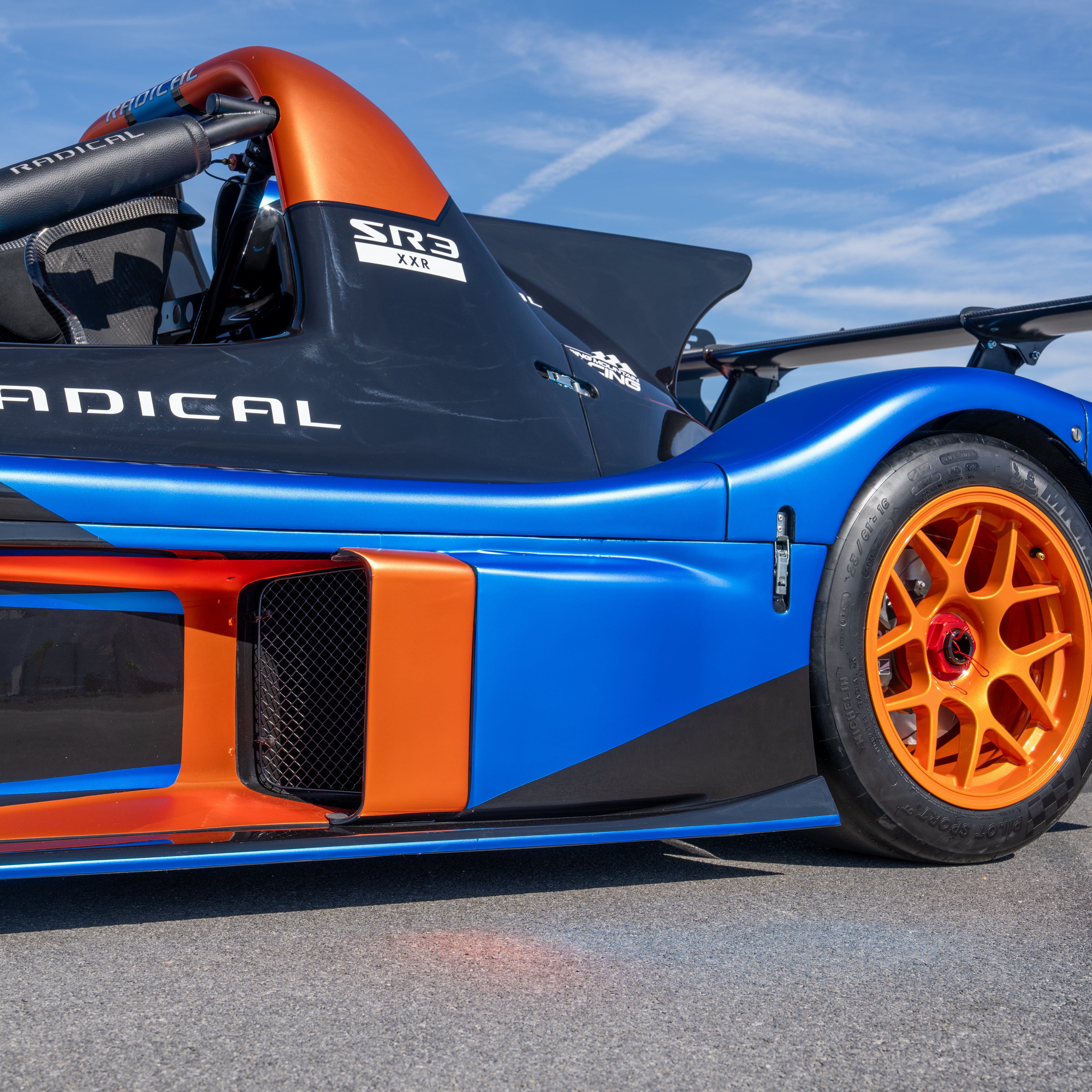

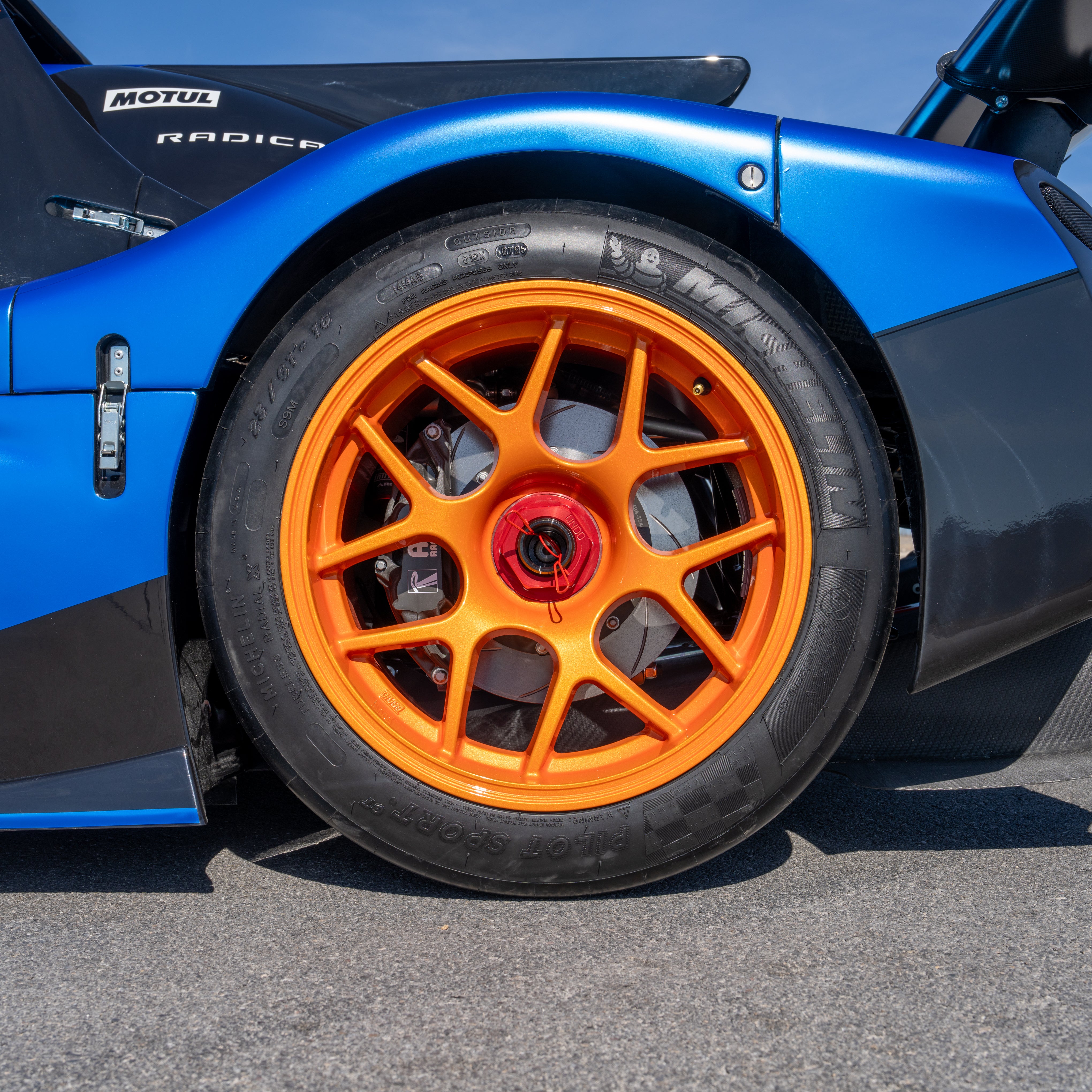

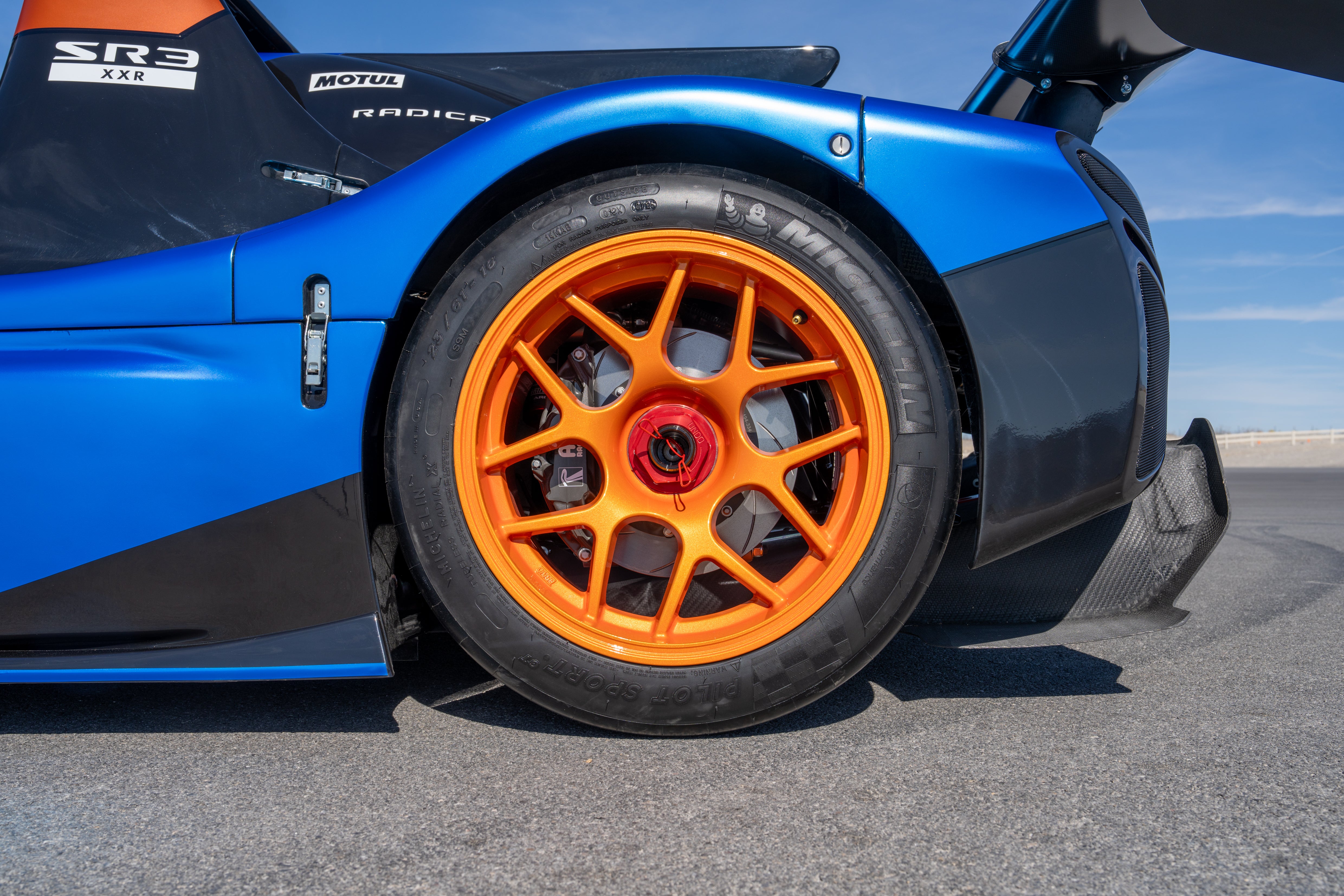

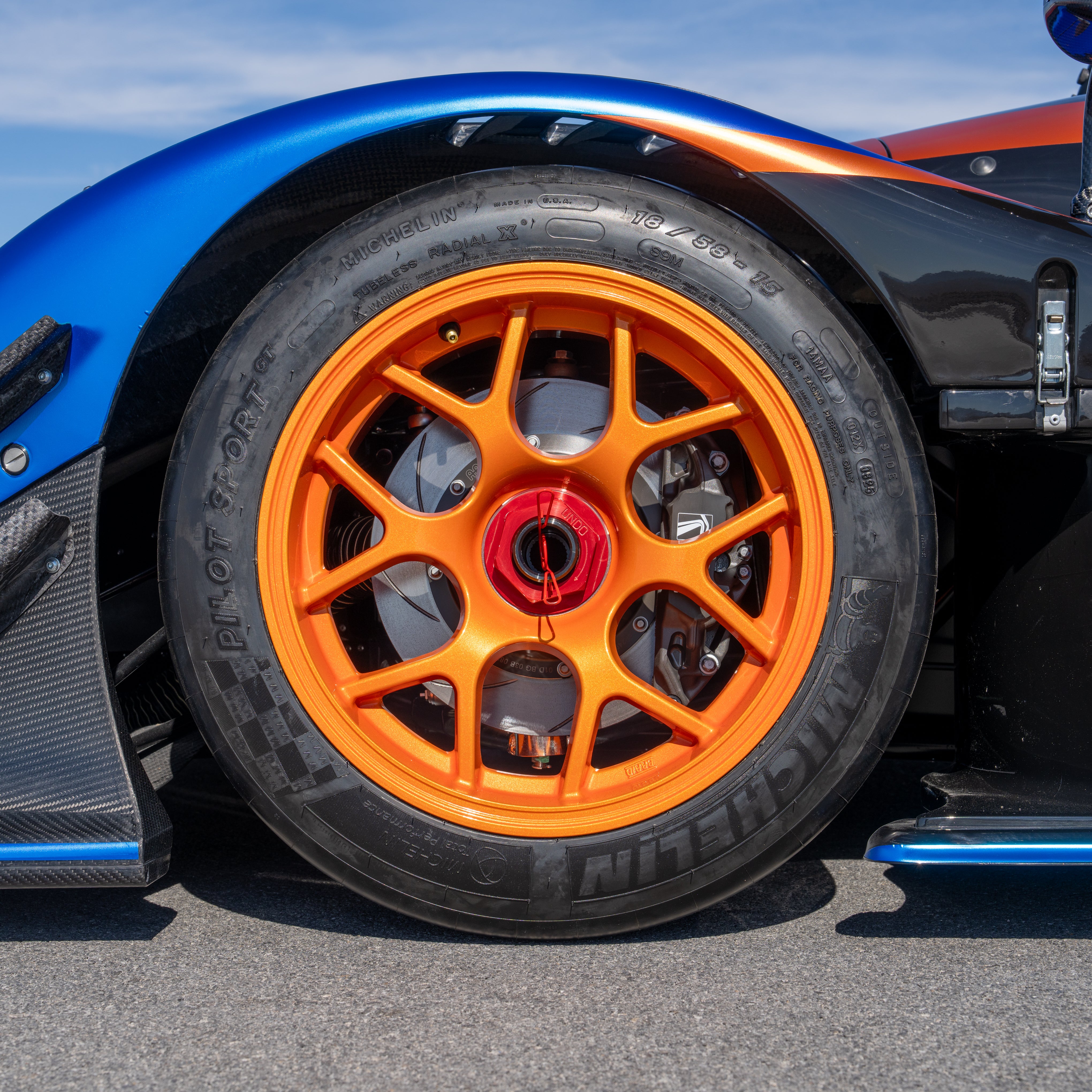

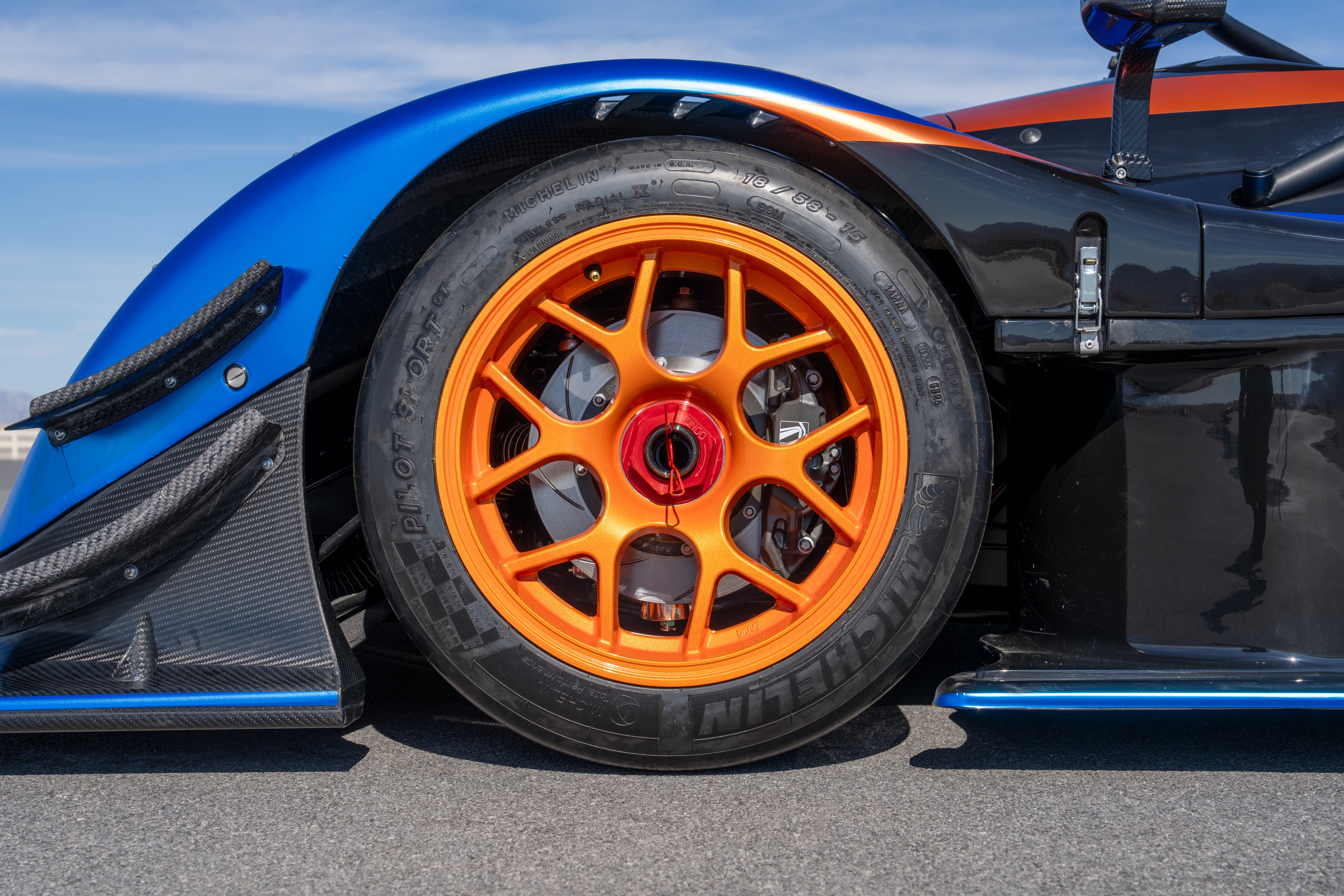

•       Bespoke Braid centre lock, cast aluminium racing wheels with red accent

•       8” × 15” diameter front and 10.5” × 16” rears

•       Hankook Racing Tyres (slick & wet options)

DIMENSIONS

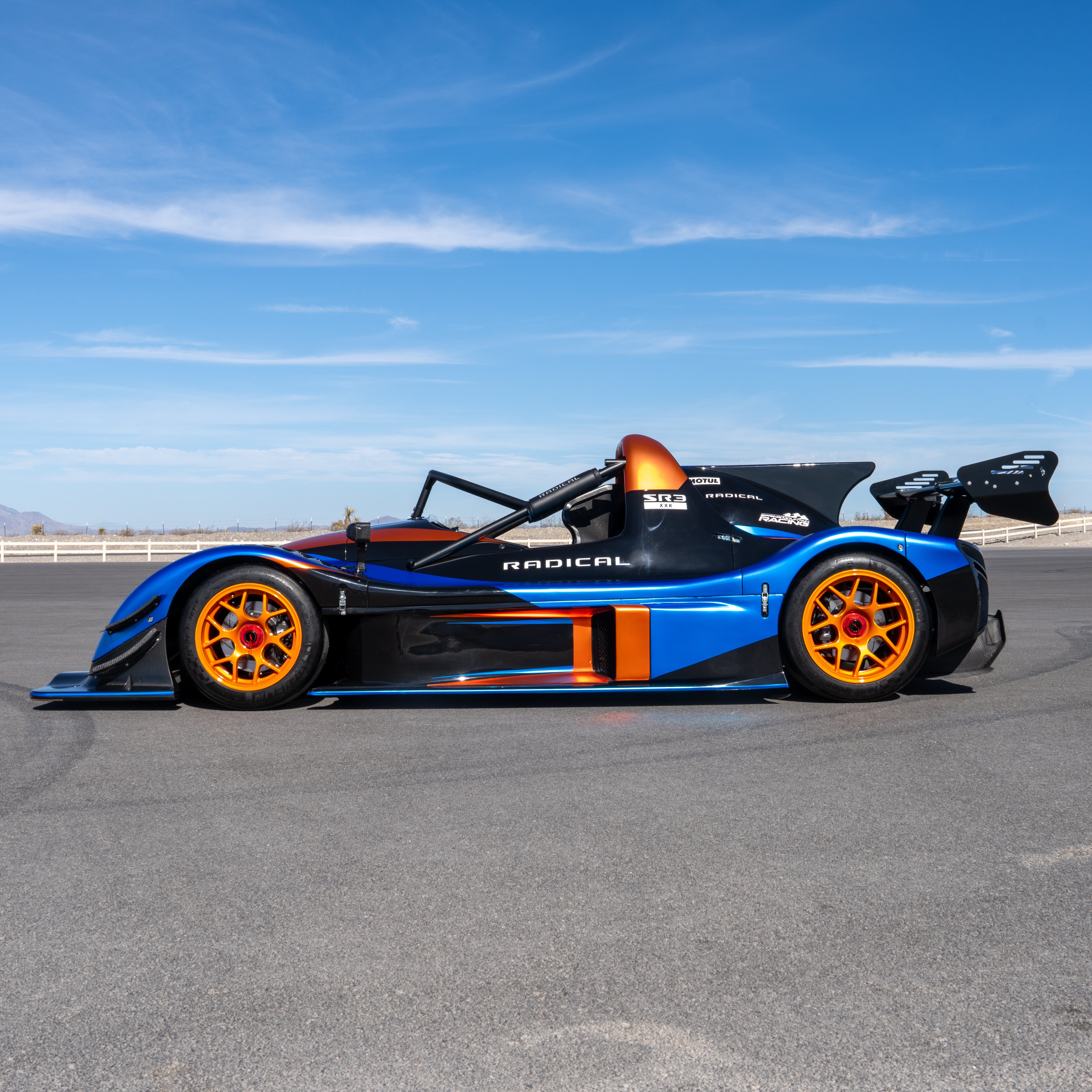

•       Length: 4077 mm

•       Width: 1799 mm

•       Height: 1093 mm

•       Weight: 620
